Vertiv Liebert Power-UPS Lithium, 400VA - System Overview

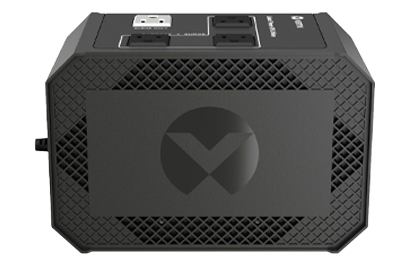

Additional Informationups-lithium-400va-4.png

Powered by lithium-ion battery technology, the UPS provides up to three times the lifespan of traditional valve-regulated lead-acid (VRLA) batteries, along with faster recharge times, longer runtime, and up to 10x times more discharge cycles. This helps reduce maintenance needs and significantly lower the total cost of ownership over the life of the system.

Designed for flexibility and ease of deployment, the UPS features a compact and lightweight form factor weighing approximately 3.9 pounds. The system is built to operate in demanding conditions, supporting ambient temperatures of up to 104°F (40°C), making it ideal for locations with limited airflow. Additional features include audible alarm management and Energy Star certification.

Vertiv Liebert Power-UPS Lithium, 400VA - Specifications

Model Number

PUL-400LVT

Capacity (VA / W)

400 / 240

Unit Dimensions, in (mm) W x D x H

4.72 x 8.27 x 5.51 (120 x 210 x 140)

Unit Weight, lbs (kg)

3.92 lbs (1.78 kg)

Input AC

Nominal Voltage
- 120 VAC
Voltage Range
- 88-142 VAC
Frequency Range
- 50/60Hz +/- 1 Hz (auto-sensing)
Surge Energy Rating
- 381 Joules
Input Cord
- 6 ft. attached with NEMA 5-15P

Output AC (On Utility)

Nominal Voltage
- 120 VAC
Voltage Range
- 88-142 VAC
Frequency Range
- 50/60Hz +/- 1 Hz (auto-sensing)
Efficiency
- Up to 98.3% at 100% load

Output AC (On Battery)

Nominal Voltage
- 120 VAC
Voltage Range
- Nominal +/- 10%
Frequency Range
- 50/60Hz +/- 1 Hz (auto-sensing)
Waveform
- PWM Simulated Sinewave
Transfer Time
- 4-8 ms, typical (10 ms maximum)
Overload Capacity
- 110% for 5 seconds, 120% immediate shutdown
Protection
- Electronic (over current, short circuit, over charge w/ latching shutdown)
Battery Type
- Lithium-Ion
Battery Backed Outlets
- 3x NEMA 5-15R
Surge Only Outlets
- 1x NEMA 5-15R
