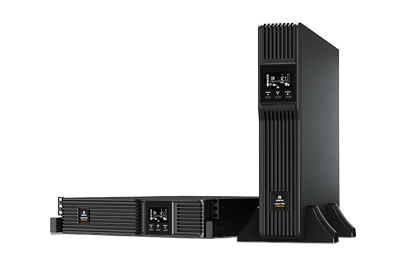

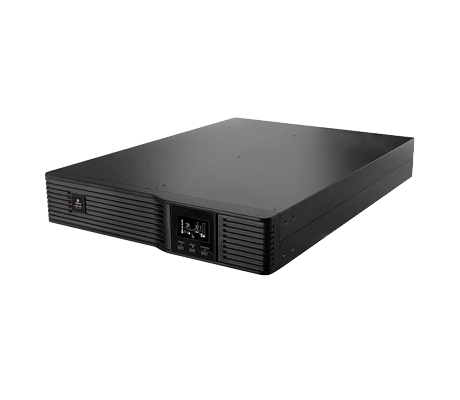

Vertiv Liebert PSI5 Lithium-Ion TAA 1500-3000VA UPS - System Overview

psi5-lithium-ion-taa-1500-3000vaAdditional Information

This system is designed to offer advanced power protection for server rooms, network closets, and other edge-distributed IT applications. The Vertiv Liebert PSI5 TAA Lithium-Ion 1,500-3,000VA UPS family features a standard 5-year warranty and significantly more runtime and quicker recharge time than those powered by traditional valve-regulated lead acid (VRLA) batteries.

With an Intellislot network management card option, these UPS appliances can be easily managed remotely over the network. To further protect against utility voltage fluctuations, the appliances have automatic voltage regulation (AVR), and deliver a perfect sine wave output to protect IT hardware. With low-maintenance and a long-lasting battery life, the Vertiv Liebert PSI5 TAA Lithium-Ion 1,500-3,000VA UPS family is a great choice for remote locations. It can provide up to 20 minutes of runtime at half-load or 9 minutes at full load in the event of a power failure.

Vertiv Liebert PSI5 Lithium-Ion TAA 1500-3000VA UPS - Specifications

System Specifications

Model Form Factor Rating Unit Dimensions, in (mm) W x D x H Unit Weight, lbs (kg)
PSI5-1500RT120LITAA 2U Rack/Tower 1500VA / 1350W 17.2 x 16.2 x 3.4 in (438 x 411 x 86 mm) 28.3 lbs (12.9 kg)
PSI5-2200RT120LITAA 2U Rack/Tower 1920VA / 1920W 17.2 x 20.1 x 3.4 in (438 x 510 x 86 mm) 39.5 lbs (18.0 kg)
PSI5-3000RT120LITAA 2U Rack/Tower 3000VA / 2700W 17.2 x 24.8 x 3.4 in (438 x 630 x 86 mm) 53.5 lbs (24.3 kg)

Input/Output AC Parameters

Input Plug
PSI5-1500RT120LITAA
- NEMA 5-15P
PSI5-2200RT120LITAA
- NEMA L5-20P
PSI5-3000RT120LITAA
- NEMA L5-30P
Input Cord
- 8ft (3m)
Non-Programmable Receptacles
PSI5-1500RT120LITAA
- (3) NEMA 5-15R
PSI5-2200RT120LITAA
- (1) NEMA L5-20R, (3) NEMA 5-20R
PSI5-3000RT120LITAA
- (1) NEMA L5-30R, (3) NEMA 5-20R
Programmable Receptacles
PSI5-1500RT120LITAA
- (3) NEMA 5-15R
PSI5-2200RT120LITAA
- (3) NEMA 5-20R
PSI5-3000RT120LITAA
- (3) NEMA 5-20R
Nominal Voltage Setting
- 120VAC Default; 100/110/115/125VAC User Selectable
Voltage Range Without Battery Operation
- 75 - 146VAC
Frequency Range
- 55 to 65Hz (57~63Hz Battery to Normal Comeback)
Surge Protection
- ANSI C62.41, Category A, Level 3
Transfer Time
- 4-6ms Typical
Battery Waveform
- Pure Sine Wave

Battery Parameters

Type
- Lithium-Ion (LiFePO4)
Recharge Time (from full discharge)
- 2 hrs to 90%
Full-Load Runtime
PSI5-1500RT120LITAA
- 7.5 min
PSI5-2200RT120LITAA
- 8.6min
PSI5-3000RT120LITAA
- 8.9min
