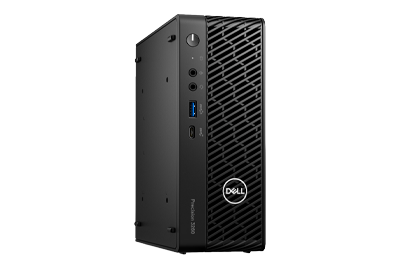

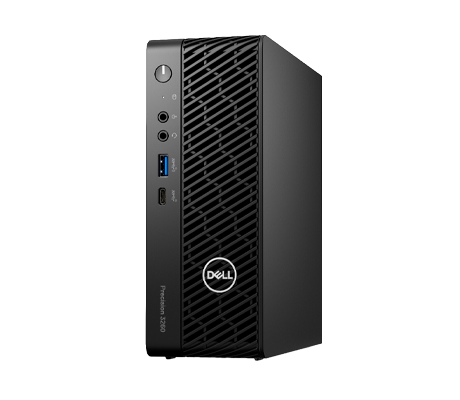

Additional InformationDespite its small size at a weight of just 3 lbs., the Dell 3260 workstation offers 2x M.2 NVMe drives and 1x 2.5-inch SATA drive for up to 9TB or RAID capable storage. In addition, memory is configured with 2x SODIMM DDR5 slots reaching a maximum capacity of up to 64GB at up to 4800MHz and includes both non-ECC and ECC options. Graphics options range from integrated Intel UHD Graphics 730 or 770 to discrete low-profile NVIDIA T400, T600, T1000, or RTX 3000 cards. It can support up to 7x 4K 60 Hz displays using both the 3x DisplayPort ports to access the CPUs integrated UHD graphics plus an optional GPU with 4x Mini DisplayPort ports. Alternatively, up to 3x 8K displays can be connected.
Expansion is limited to 1x half-height Gen4 PCIe x8 slot. Meanwhile, network connectivity includes 1x RJ45 Gigabit Ethernet port and optional Wireless 6E. Cooling relies on the compact chassis design and an external power adapter rated at 180W or 240W, with recommended power adapters dependent on configuration. Security features include a TPM chip, Kensington lock slot, and padlock ring. Supported operating systems include Windows 11 Pro and select Linux distributions.
- 12th Generation Intel Core CPUs
- 13th Generation Intel Core CPUs
- 14th Generation Intel Core CPUs
- Chipset: W680
- 2x DDR5 DIMMs, up to 5600MHz
- Up to 64GB
- M.2 NVMe x4 SSD, 2280
- Intel Rapid Storage Technology
- Intel Management Engine (ME) 12.0 or later
- Intel UHD Graphics 730
- Intel UHD Graphics 770
- NVIDIA T400, 2 GB GDDR6, low profile
- NVIDIA T400, 4 GB GDDR6, low profile
- NVIDIA T1000, 4 GB GDDR6, low profile
- NVIDIA T1000, 8 GB GDDR6, low profile
- NVIDIA RTX 3000, 6GB GDDR6
- Microsoft Office Personal/ Home and Business/ Professional
- Dell Optimizer for Precision
- Intel Unite solution (optional)
- Dell Client Command Suite (DCCS)
- Dell PremierColor
- USB 3.2 Gen 2x2 Capable Type-C port
- USB 3.2 Gen 2 port with PowerShare
- Universal audio jack
- Re-tasking line-out/line-in audio port
- RJ45 Ethernet port
- USB 3.2 Gen 1 port
- USB 3.2 Gen 1 port with Smart Power On
- 2x USB 3.2 Gen 2 ports
- 3x DisplayPort 1.4a (HBR2)
- Optional port (PS/2 Serial/HDMI 2.0b/Displayport 1.4a (HBR3)/VGA/USB Type-C with DisplayPort Alt mode)
- Power adapter port
- Security-cable slot
- Padlock ring
- Half-height Gen4 PCIe x8 slot
- M.2 2230 slot for WiFi and Bluetooth card
- 2x M.2 2230/2280 slots for SSD
- SATA 3.0 slot for 2.5-inch hard drive
- Qualcomm WCN6856-DBS, 2x2 MIMO, 3571 Mbps, 2.4GHz/5GHz/6GHz, Wi-Fi 6E (WiFi 802.11ax), Bluetooth 5.2
- Intel AX211, 2x2 MIMO, 2400 Mbps, 2.4GHz/5GHz/6GHz, Wi-Fi 6E (WiFi 802.11ax), Bluetooth 5.2
- Intel Standard Manageability (ISM) non-vPro
- Intel Endpoint Management Assistant
- No OOB Management
- AMT Enable/Disable through BIOS
- DASH (through AMT and ISM)
- OOB Remote BIOS Management and HDD Wipe
- Dell Command | Integration Suite for SCCM (DCIS)
- Dell Command | Intel vPro Out of Band (DCIV)
- Dell Command | Monitor (DCM)
- CIM configuration features BIOS Configuration through Dell Command | Configure and Dell Command | PowerShell Provider
- Dell Command | Configure (DCC)
- AMT Configuration
- Dell Command | Update (DCU)
- Dell Command | Deploy (DCD)
- 180W AC adapter, 7.4mm barrel
- 240W AC adapter, 7.4mm barrel
- Height: 7.48 in. (190 mm)
- Width: 2.82 in. (71.80 mm)
- Depth: 7.00 in. (178 mm)
- Weight (maximum): 4.49 lbs. (2.03 kg)
- Weight (minimum): 3.02 lbs. (1.37 kg)
