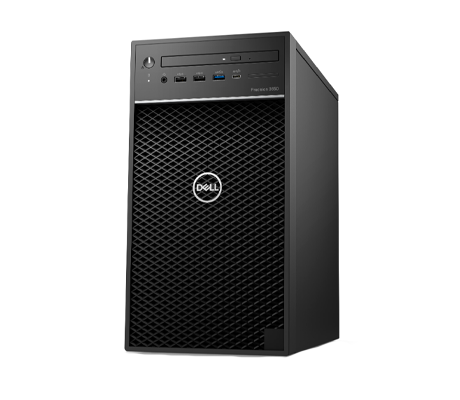

Dell Precision 3650 Workstation Tower - System Overview

Description

Dell 3650 Workstation components

The Dell Precision 3650 Workstation Tower is designed for professionals who require an entry-level platform that supports high-performance computing applications. Outfitted with Intel Xeon processors and support for up to 128GB of DDR4 memory, this tower workstation delivers fast and efficient performance for resource-intensive workloads like VR content creation with support from AMD Radeon and Nvidia professional graphics cards. It offers 4-channel high-definition audio with a built-in 2W speaker plus multiple ports front and back to connect a variety of external devices.

Performance

Powered by 10th and 11th generation Intel Xeon Core i3, i5, i7, i9 and Xeon W series processors, the workstation offers both powerful performance and energy efficiency. These processors, deliver 4 to 10 cores and up to 20 threads using Intel’s hyper-threading technology. With these processors, you can expect smooth and fast performance, even when running multiple applications simultaneously.

Memory

With 4x Unbuffered DIMMs (UDIMM) the system supports up to 128GB of DDR4 ECC and non-ECC memory, providing fast and efficient access to data. This allows you to run multiple applications at once without any slowdowns or lag. The memory can be configured in a variety of configurations, and include options with 8GB, 16GB, and 32GB modules, allowing you to customize the workstation to meet your specific needs. Memory speeds of up to 2666MHz are supported.

Storage

The Dell 3650 Workstation Tower comes with a variety of storage options featuring up to 4x NVMe M.2 drives, or 2.5-inch and 3.5-inch SATA drive options, depending in the processor installed. It supports up to 8TB of hard drive storage or 2TB of solid-state drive M.2 (SSD) storage, allowing you to store all your files, documents, and applications. Additionally, the workstation includes a DVD-RW drive, so you can easily access and read CDs and DVDs.

Expansion

Dell 3650 Workstation rear of system

There’s room for expansion, thanks to its PCIe slots. It has two PCIe x16 slots and two PCIe x4 slots, which can be used to add additional graphics cards, network cards, or other peripherals. This allows you to customize the workstation to meet the specific needs of your business or workflow.

Management

A variety of management features are supported to help you keep your workstation running smoothly. Dell's OpenManage software allows you to remotely monitor and manage your workstation from anywhere. The workstation also comes with a variety of security features, including a Trusted Platform Module (TPM) and a chassis lock, to keep your data safe and secure. Operating systems supported on this system include Windows 10 and 11, plus Linux Red Hat, Ubuntu, and Kylin v10.1.

Summary

Overall, the Dell Precision 3650 Workstation Tower is a reliable entry-level workstation ideal for professionals who require fast and efficient performance. With Intel Xeon processors, support for up to 128GB of DDR4 memory, and plenty of storage and expansion options, this system is a great choice for anyone. It’s designed with the flexibility to support a number of different workloads. Whether you are a designer, engineer, or researcher, this workstation tower is sure to meet your needs.

Request A Quote

Dell Precision 3650 Workstation Tower - Specifications

Processor - 1 Socket
  • 10th and 11th Generation Intel Core
  • 10th and 11th Generation Intel Xeon
  • Supports TDP of up to 65W-125W
Chipset
    Intel W580 chipset
Memory
  • 4x DIMM slots (dual channel) Up to 128GB or up to 3200MHz Non-ECC & ECC DDR4 Memory
  • 2x DIMMs per channel (2DPC) speed of 3200MHz with 11th gen processors only
  • Speed: 2666MHz to 3200MHz
Storage controllers
    Integrated: Intel® Rapid Storage Controller 12.0 supporting SATA 6Gb/s and host based RAID 0/1/5/10

Storage Options
    Support for up to (3) 3.5” SATA or (4) 2.5” SATA For 11th gen processors, up to (3) M.2 PCIe NVMe SSD on motherboard slots. Boot drive installed on gen 4 slot For 10th gen processors, up to (2) M.2 PCIe NVMe SSD on motherboard slots. Boot drive installed on gen 3 slot Support for Intel® Ready Mode™ technology Support for up to (1) additional PCIe SSD on Dell Precision Ultra-Speed drive with active cooling
    M.2 PCIe SSD (NVMe)

  • M.2 2280 256GB NVMe™ gen3 Class 40
  • M.2 2280 512GB NVMe™ gen4 Class 40
  • M.2 2280 512GB NVMe™ gen3 Class 50
  • M.2 2280 1TB NVMe™ gen3 Class 50
  • M.2 2280 1TB NVMe™ gen4 Class 40
  • M.2 2280 2TB NVMe™ gen4 Class 40
  • SATA 2.5” 7200 RPM

  • 2.5” 1TB 5400 RPM HDD (7mm)
  • 2.5” 2TB 5400 RPM HDD (7mm)
  • 2.5” 500GB 7200 RPM HDD (7mm)
  • 2.5” 1TB 7200 RPM HDD (7mm)
  • SATA 3.5”

  • 3.5” 500GB 7200 RPM HDD
  • 3.5” 1TB 7200 RPM HDD
  • 3.5” 2TB 7200 RPM HDD
  • 3.5” 4TB 5400 RPM HDD
  • 3.5” 4TB 7200 RPM Enterprise HDD
  • 3.5” 8TB 7200 RPM Enterprise HDD
  • Self Encrypting Drives

  • M.2 2280 256GB NVMe gen3 SED
  • M.2 2280 512GB NVMe gen3 SED
  • M.2 2280 1TB NVMe gen3 SED
  • 2.5” 500GB 7200RPM OPAL SED FIPS (7mm)
Power supplies
  • 300W 90% efficient PSU (80PLUS Gold Certified Certified) Energy Star compliant
  • 460W 90% efficient PSU (80PLUS Gold Certified Certified) Energy Star compliant
  • 550W 90% efficient PSU (80PLUS Gold Certified) Energy Star compliant
  • 1000W 90% efficient PSU (80 PLUS Gold Certified) Energy Star compliant
Chassis
  • 1x Optional Port (VGA, HDMI 2.0, DP1.4 with 5K display support, Type C w/DP-Alt mode)
  • 1x Optional 2nd RJ45 Network Connector (2.5GHz)
  • Height x Width x Depth

  • 13.19 in. (335.0 mm)x : 6.95 in. (176.6 mm) x 13.58 in. (345.0 mm)
  • Weight

  • 18.74 lb (8.5 kg)
Systems Management
  • Dell Command
  • Intel vPro™ Out of Band
Security
  • Trusted Platform Module TPM 2.0
  • Dell Data Protection| Security Tools
  • Dell Data Protection| Encryption
  • Dell HW Crypto Accelerator
  • Microsoft Windows Bitlocker
  • System Erase
I/O & Ports
    Front ports:

  • 2x USB 2.0 Type A
  • 1x USB 3.2 Type A Gen1 (5Gbps), with PowerShare
  • 1x USB 3.2 Type CTM Gen2 (10Gbps), with PowerShare
  • No SD card reader
  • Rear ports:

  • 2x DisplayPortTM 1.4
  • 2x PS2 (Legacy for keyboard and mouse)
  • 2x USB 2.0 Type A (with SmartPower)
  • 1x RJ45 Network Connector
  • 1x USB 3.2 Type A Gen2 (10Gbps)
  • 2x USB 3.2 Type A Gen1 (5Gbps)
  • 1x Audio Line out
Supported Operating Systems
  • Windows® 10 Home (64-bit)
  • Windows® 10 Professional (64-bit)
  • Windows® 10 Professional (64-bit) National Academic
  • Windows® CMIT Government Edition (V0-H)
  • Windows® 10 Professional Workstation (64-bit) (for 6 or more cores)
  • Windows® 10 IoT Enterprise LTSC
  • Red Hat® Linux® 8.4
  • Ubuntu® Linux® 20.04 LTS
  • Kylin Linux® 10.1 (China only)
