Dell Precision 7960 Tower Workstation - System Overview

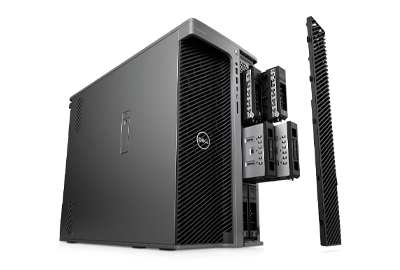

Dell Precision 7960 Tower Workstation front Compatible with SATA, SAS, and NVMe drive types the system can be configured with front and rear drive cages plus additional internal storage.

  • 8x (4 front, 4 rear) drive bays with optical drive configuration
  • 10x (6 front, 4 rear) drive bays without optical drive configuration
  • Up to 8x M.2 NVMe drives (4 in front, 4 in rear)

    • As a full-size tower, the Precision 7960 tower workstation takes up a 5U rack space. ISV certification is provided by the system for use with the most widely used apps. To make sure you get the most out of the ISV certified apps, the Dell Optimizer for Precision also makes system management easier by producing reports, system diagnostics, and productivity increases. In addition, it also allows for up to 8x PCIe slots such as:

    • 2x full-height Gen5 PCIe x16 slots
    • 2x full-height Gen4 PCIe x16 slots
    • 2x full-height Gen4 PCIe x8 slots
    • 2x full-height, half-length Gen4 PCIe x8 slots wired as x4 electrically

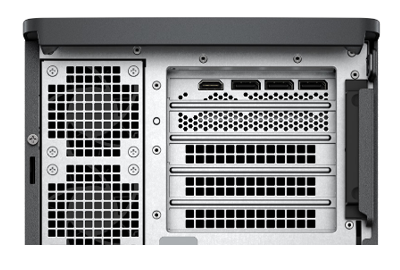

    Dell Precision 7960 Tower Workstation rear

    Dell’s Precision 7960 can be outfitted with up to 4x 300W GPUs. That includes NVIDIA’s top of the line RTX 6000 Ada generation GPU, which features 48GB of memory and offers 18,176 next-generation CUDA cores, 142 third-generation RT cores, and 568 fourth-generation Tensor cores. This dense system supports a variety of graphics cards depending on your business needs and includes the following vetted options:

    NVIDIA:

    • NVIDIA RTX™ 6000 ADA 48GB GDDR6
    • NVIDIA RTX™ A6000, 48GB GDDR6
    • NVIDIA RTX™ A5500, 24GB GDDR6
    • NVIDIA RTX™ A4500, 20GB GDDR6
    • NVIDIA RTX™ A4000, 16GB GDDR6
    • NVIDIA RTX™ A2000, 12GB GDDR6
    • NVIDIA T1000, 4GB GDDR6
    • NVIDIA T400, 2GB GDDR6

    AMD:
    • AMD Radeon™ Pro W6800, 32GB GDDR6
    • AMD Radeon™ Pro W6600, 8GB GDDR6
    • AMD Radeon™ Pro W6400, 4GB GDDR6

    Request A Quote

    Dell Precision 7960 Tower Workstation - Specifications

    Processor- 1 Socket
    • Intel® Xeon® w9-3495X (105MB Cache, 56 cores, 112 threads, 1.9GHz to 4.8GHz Turbo 350W)
    • Intel® Xeon® w9-3475X (82.5MB Cache, 36 cores, 72 threads, 2.2GHz to 4.8GHz Turbo 300W)
    • Intel® Xeon® w7-3465X (75MB Cache, 28 cores, 56 threads, 2.5GHz to 4.8GHz Turbo 300W)
    • Intel® Xeon® w7-3455 (67.5MB Cache, 24 cores, 48 threads, 2.5GHz to 4.8GHz Turbo 270W)
    • Intel® Xeon® w7-3445 (52.5MB Cache, 20 cores, 40 threads, 2.6GHz to 4.8GHz Turbo 270W)
    • Intel® Xeon® w5-3435X (45MB Cache,16 cores, 32 threads, 3.1GHz to 4.7GHz Turbo 270W)
    • Intel® Xeon® w5-3425 (30MB Cache, 12 cores, 24 threads, 3.2GHz to 4.6GHz Turbo 270W)
    • Intel® Xeon® w5-3433 (45MB Cache, 16 cores, 32 threads, 2.0GHz to 4.2GHz Turbo 220W)
    • Intel® Xeon® w5-3423 (30MB Cache,12 cores, 24 threads, 2.1GHz to 4.2GHz Turbo 220W)
    Operating System
    • Windows 11 for Workstations
    • Windows 11 Downgrade to Windows 10 22H2
    • Ubuntu® 22.04, 64-bit
    • Red Hat® Linux® 8.6 Enterprise WS
    Chipset
      Intel W790
    Memory
      16x DIMM Slots
    • From 16GB, 1 x 16GB, DDR5, 4800MHz, ECC to 4 TB, 16 x 256GB, DDR5, 4800MHz, ECC
    Graphics Options
      AMD or NVIDIA (4x 300W) graphics

      NVIDIA:

    • NVIDIA RTX™ 6000 ADA 48GB GDDR6
    • NVIDIA RTX™ A6000, 48GB GDDR6
    • NVIDIA RTX™ A5500, 24GB GDDR6
    • NVIDIA RTX™ A4500, 20GB GDDR6
    • NVIDIA RTX™ A4000, 16GB GDDR6
    • NVIDIA RTX™ A2000, 12GB GDDR6
    • NVIDIA T1000, 4GB GDDR6
    • NVIDIA T400, 2GB GDDR6

      • AMD:

    • AMD Radeon™ Pro W6800, 32GB GDDR6
    • AMD Radeon™ Pro W6600, 8GB GDDR6
    • AMD Radeon™ Pro W6400, 4GB GDDR6
    Storage
    • 8x (4 front, 4 rear) drive bays with optical drive configuration
    • 10x (6 front, 4 rear) drive bays without optical drive configuration
    • Up to 8x M.2 NVMe drives (4 in front, 4 in rear)

      • BOOT Drives:

    • M.2 2280, 512GB, PCIe NVMe Gen4 x4, SSD, Class 40
    • M.2 2280, 1TB, PCIe NVMe Gen4 x4, SSD, Class 40
    • M.2 2280, 2TB, PCIe NVMe Gen4 x4, SSD, Class 40
    • M.2 2280, 4TB, PCIe NVMe Gen4 x4, SSD, Class 40

      • Data Drives:

    • M.2 2280, 512GB, PCIe NVMe Gen4 x4, SSD, Class 40
    • M.2 2280, 1TB, PCIe NVMe Gen4 x4, SSD, Class 40
    • M.2 2280, 2TB, PCIe NVMe Gen4 x4, SSD, Class 40
    • M.2 2280, 4TB, PCIe NVMe Gen4 x4, SSD, Class 40
    • 2.5-inch, 600GB, 15,000RPM, SAS, Enterprise HDD
    • 2.5-inch, 1.2TB, 10,000RPM, SAS, Enterprise HDD
    • 2.5-inch, 2.4TB, 10,000RPM, SAS, Enterprise HDD
    • 3.5-inch, 2TB, 7200RPM, SATA, Enterprise HDD
    • 3.5-inch, 4TB, 7200RPM, SATA, Enterprise HDD
    • 3.5-inch, 8TB, 7200RPM, SATA, Enterprise HDD
    • 3.5-inch, 12TB, 7200RPM, SATA, Enterprise HDD
    • 2.5-inch, 1.92TB, MU, SATA, Enterprise SSD
    • M.2 2280, 512GB, PCIe NVMe Gen4 x4, SSD, Class 40
    • M.2 2280, 1TB, PCIe NVMe Gen4 x4, SSD, Class 40
    • M.2 2280, 2TB, PCIe NVMe Gen4 x4, SSD, Class 40
    • M.2 2280, 4TB, PCIe NVMe Gen4 x4, SSD, Class 40
    Storage Controller
      Integrated:

    • Intel chipset 6Gb/s SATA controller supporting up to 8 ports for SATA HDD/SSD. 1 port for optical drive.
    • Intel vROC SW SATA RAID 0,1,5,10 supported across up to 8 SATA ports
    • Integrated Intel chipset controller supports up to 8 M.2 NVMe drives in 4 externally-facing FlexBays or up to 8 M.2 NVMe drives in 2 Dell Ultra-Speed Drive Quad x16 PCIe cards

      • Optional:

    • l Intel vROC Standard SW NVMe RAID 0,1,10 option - (motherboard activation key) for M.2 NVMe PCIe SSDs in FlexBays or on Ultra-Speed Drive Quad x16 or Duo x8 card (0,1).
    • Maximum 4 drives per RAIDset. Supports 2 FlexBay NVMe RAIDsets - up to 4 drives in front and up to 4 drives in rear Flexbays
    • l Intel vROC Premium SW NVMe RAID 0,1,5,10 option adds RAID 5
    • MegaRAID 9660* SATA/SAS HW RAID controller. RAID 0,1,5,10
    • Supports up to 10 SATA/SAS drives or up to 4 M.2 NVMe drives in front FlexBays. * Available post launch
    • l MegaRAID 9540 SATA/SAS RAID controller. RAID 0,1,10. Supports up to 8 SATA/SAS drives
    Add-in cards
    • Intel® Ethernet Network Adapter X710GBE NIC Card
    • Intel® Ethernet Network Adapter i225 2.5GBE NIC Card
    • ThunderboltTM 4 PCIe card
    • Dell Precision Ultra-Speed Drive Quad (x16) and Duo (x8) PCIe cards support M.2 NVMe drives with active cooling with up to 4 and 2 NVMe drives respectively
    • Broadcom MegaRAID 9540 SATA/SAS RAID controller
    • Broadcom MegaRAID 9660 * SATA/SAS HW RAID controller (also supports up to 4 M.2 NVMe drives in front FlexBays.) * Post launch
    • Qualcomm® WCN6856-DBS Wi-FI 6E, Bluetooth 5.3 wireless LAN card
    • USB 3.1 PCIe card
    I/O Ports
      Front:

    • 2 USB 3.2 Gen 1 ports
    • USB 3.2 Gen 2 Type-C port with PowerShare
    • USB 3.2 Gen 2 Type-C port
    • Universal audio port
    • SD-card slot

      • Rear:

    • 3 USB 3.2 Gen 2 Type-C ports
    • 2 USB 3.2 Gen 1 ports
    • USB 3.2 Gen 1 port with Smart Power On
    • RJ45 Ethernet port, 1GBE
    • RJ45 Ethernet port, 10GBE
    • Line-out port
    • Serial port
    • 2 PS2 ports

      • Slots:

    • 2 full-height Gen5 PCIe x16 slots
    • 2 full-height Gen4 PCIe x16 slots
    • 2 full-height Gen4 PCIe x8 slots
    • 2 full-height, half length Gen4 PCIe x8 slots wired as x4 electrically
    Chassis
      Tower
      H: : 16.96in. (430.70mm) / 17.09in. (434.20mm) with runner feet
      W: 8.58in. (218.00mm)
      D: 21.19in. (538.30mm) / 22.41in. (569.15mm) with lock structure

      Weight:

    • Maximum: 82.82lbs. (37.56kg)
    • Typical: 52.50lbs. (23.81kg)
    • Minimum: 46.39lbs. (21.04kg)
    Optical Drive
    • 8x DVD-ROM 9.5mm optical drive
    • 8x DVD+/-RW 9.5mm optical drive
    • 16x DVD+/-RW half-height optical drive
    Power
    • 1100W (for AC input voltage of 108VAC - 180VAC) 1400W (input voltage 181VAC - 240VAC) –90% efficient (80PLUS Gold Certified).
    • 1500W (for AC input voltage of 108VAC - 180VAC) 2200W (input voltage 181VAC - 240VAC) –90% efficient (80PLUS Platinum Certified). 1500W/2200W PSUs have C19 AC cord and require 20A circuit @115V or a 220V circuit
    • Externally accessible/removable/lockable
    Hardware Security
    • Kensington security-cable slot
    • Padlock loop
    • Chassis lock support - Coin locker
    • Chassis intrusion switch
    • Optional lockable bezels for externally- facing front and rear storage FlexBays
    • TPM 2.0 Discrete Hardware

    Request A Quote

    Get a quote for Dell Precision 7960 Tower Workstation

    If you know what you want but can't find the exact configuration you're looking for, have one of our knowledgeable sales staff contact you. Give us a list of the components you would like to incorporate into the system, and the quantities, if more than one. We will get back to you immediately with an official quote.

    [email protected]

    Dell Precision 7960 Tower Workstation - Documentation

    Dell Precision 7960 Tower Spec Sheet
    Dell Precision 7960 Tower Owner's Manual
    Dell Precision 7960 Tower RAID Configuration
    Dell Precision 7960 Tower Setup And Specifications
