The NVIDIA GB300 Grace Blackwell Ultra Superchip integrates a 72-core NVIDIA Grace CPU with an NVIDIA Blackwell Ultra GPU. The CPU includes 496 GB of LPDDR5X ECC memory while the GPU features 252 GB of HBM3E memory. The high-speed NVLink-C2C connection creates a unified coherent memory pool of up to 748 GB.
Expansion includes 1x PCIe Gen5 x16 slot and 2x PCIe Gen5 x8 slots. Storage options consist of 2x M.2 PCIe Gen5 x4 slots from the CPU and 2x M.2 PCIe Gen6 x4 slots from the NVIDIA ConnectX-8 SuperNIC. An additional M.2 E-key slot supports Wi-Fi. For networking, the system provides two 400 Gb/s QSFP ports via the NVIDIA ConnectX-8 SuperNIC, one 10 Gb/s Ethernet port with Marvell AQC113, and 1x dedicated 1 Gb/s management LAN. These features enable low-latency connectivity for distributed AI training and cluster integration. The W775-V10 comes with closed-loop liquid cooling and a 1600W 80 PLUS Platinum ATX power supply. It also includes onboard BMC for remote management, enterprise-grade security, and full support for the NVIDIA AI software stack including NVIDIA DGX OS.
Explore available configurations for the Gigabyte W775-V10 AI Workstation. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.
NVIDIA GB300 Grace Blackwell Ultra Desktop Superchip:
- 1 x NVIDIA Grace CPU
- 1 x NVIDIA Blackwell Ultra GPU
- Connected with NVIDIA NVLink-C2C
NVIDIA Grace CPU:
- 496 GB of LPDDR5X memory with ECC
- 396 GB/s memory bandwidth
NVIDIA Blackwell Ultra GPU:
- 252 GB HBM3E
- 7.1 TB/s memory bandwidth
Internal M.2:
- 2 x M.2 (2280), PCIe Gen5 x4, from CPU, with software RAID 1 support
- 2 x M.2 (2280), PCIe Gen6 x4, from ConnectX-8
Integrated in onboard BMC
- 1 x Mini-DP (1920 x 1080 @ 60 Hz)
Optional GPUs:
- NVIDIA RTX PRO 6000 Blackwell Workstation Edition
- NVIDIA RTX PRO 6000 Blackwell Max-Q Workstation Edition
- NVIDIA RTX PRO 4000 Blackwell SFF Edition
- NVIDIA RTX PRO 2000 Blackwell
- Realtek ALC4080 Audio Codec
- Front: 2 x Audio jacks (Audio out/Mic)
- Rear: 3 x Audio jacks (Audio in/Audio out/Mic)
- Slot_1: PCIe x16 (Gen5 x16), for GPUs
- Slot_2: PCIe x16 (Gen5 x8)
- Slot_3: PCIe x16 (Gen5 x8)
- 1 x M.2 (2230), E-key (Wi-Fi), PCIe Gen2 x1, from ConnectX-8
- 1 x USB 3.2 Gen2 port (Type-C) (5 V Output)
- 2 x USB 3.2 Gen1 ports (Type-A)
- 2 x Audio jacks (Audio out/Mic)
- 1 x Power button with LED
- 1 x Reset button with storage activity LED

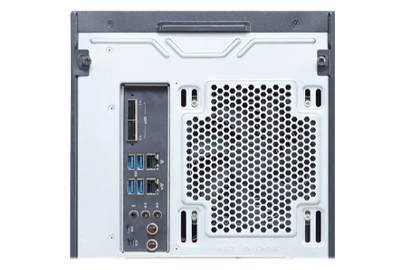

- 4 x USB 3.2 Gen2 ports (Type-A)
- 1 x Micro USB port (USB-to-UART)
- 1 x Mini-DP
- 2 x QSFP ports
- 1 x RJ45 port
- 1 x MLAN port
- 2 x Wi-Fi antenna ports
- 3 x Audio jacks (Audio in/Audio out/Mic)
- Single 1600 W ATX 80 PLUS Platinum power supply
- The system power supply requires C19 power cord.
- System requires a 20-amp circuit to plug-in.
- 2 x 400 Gb/s QSFP (1 x NVIDIA ConnectX-8 SuperNIC)
- 1 x 10 Gb/s LAN (1 x Marvell AQC113)
- 1 x 10/100/1000 Mb/s Management LAN
- Ubuntu with NVIDIA AI Developer Tools
Pedestal
245 x 500.4 x 531
Net Weight: 29.2 kg
Gross Weight: 34.4 kg
