HP ZBook Ultra 14-Inch G1a Mobile Workstation - System Overview

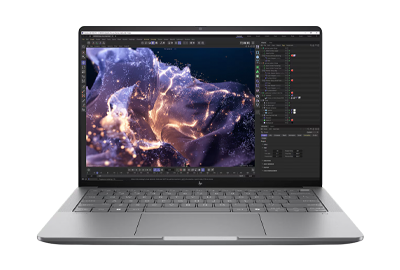

HP ZBook Ultra 14-Inch G1a Mobile Workstation front view

Additional Information

There are a number of options for displays, which include an ultra-wide viewing area (UWVA) and feature either full HD 1920x1800 pixels or OLED screens at 2880x1800 pixels. Two of the OLED options offer a touchscreen. AMD Radeon Graphics provide support for up to 3x additional displays, which can be connected using the two thunderbolt ports to either side and the HDMI port. Those Thunderbolt ports can also deliver data transfer rates of up to 40Gb/s. The system is also compatible with an HP Thunderbolt 4 Ultra 180W G6 Dock, which can connect up to 4x displays. All 4x processors supported on this lilliputian workstation have dedicated AI accelerators and feature 6, 8, 12, or 16 physical cores, with double those numbers for virtual threads.

HP ZBook Ultra 14-Inch G1a Mobile Workstation ports

Additional ports on this system include a USB Type-A port offering 10Gb/s and Kensington lock slot. The top of the screen has 2x internal microphones and a 5MP infra-red camera with a privacy slider. It has a full-sized backlit keyboard with an extra-large click pad. With an integrated graphics accelerator up to 75% of system memory to VRAM for better video performance. It has an HP XL-long Life battery that can be charged to 50% in under half an hour and can operate for 8-14.5 hours depending on configuration and applications workload. It has independent software vendor certifications for running a range of preferred programs.

HP ZBook Ultra 14-Inch G1a Mobile Workstation - Specifications

Processor- 1 Socket

Processor Family: AMD Risen AI MAX PRO Processor

  • AMD Ryzen AI Max+ PRO 395 (up to 5.1 GHz max boost clock, 64 MB L3 cache, 16 cores, 32 threads) with AMD Radeon 8060S Graphics and AMD Risen AI (50 NPU TOPS)
  • AMD Ryzen AI Max PRO 390 (up to 5.0 GHz max boost clock, 64 MB L3 cache, 12 cores, 24 threads) with AMD Radeon 8050S Graphics and AMD Risen AI (50 NPU TOPS)
  • AMD Ryzen AI Max PRO 385 (up to 5.0 GHz max boost clock, 32 MB L3 cache, 8 cores, 16 threads) with AMD Radeon 8050S Graphics and AMD Ryzen AI (50 NPU TOPS)
  • AMD Ryzen AI Max PRO 380 (up to 4.9 GHz max boost clock, 16 MB L3 cache, 6 cores, 12 threads) with AMD Radeon 8040S Graphics and AMD Ryzen AI (50 NPU TOPS)

Neural Processing Unit:

  • AMD Ryzen AI

Chipset

  • AMD Integrated APU

Product Color

  • Meteor Silver

Memory

  • 128 GB LPDDR5X-8533 MT/s non-ECC
  • Transfer rates up to 8000 MT/s

Internal Storage

  • 512GB up to 4TB PCIe Gen4 x4 NVMe M.2 2280 TLC SSD

Display Size

  • Diagonal Metric: 35.6 cm (14 inches)

Display

Imperial:

  • 14" diagonal, WUXGA (1920 x 1200), UWVA, anti-glare, 400 nits, 100% sRGB
  • 14" diagonal, 2.8K (2880 x 1800), OLED, UWVA, touch, 48-120 Hz, BrightView, Low Blue Light, 400 nits, 100% DCI-P3

Metric:

  • 35.6 cm (14") diagonal, WUXGA (1920 x 1200), UWVA, anti-glare, 400 nits, 100% sRGB
  • 35.6 cm (14") diagonal, 2.8K (2880 x 1800), OLED, UWVA, touch, 48-120 Hz, BrightView, Low Blue Light, 400 nits, 100% DCI-P3

Graphics

Integrated:

  • AMD Radeon 8060S Graphics
  • AMD Radeon 8050S Graphics
  • AMD Radeon 8040S Graphics

Audio

  • Audio by Poly Studio, 4 integrated stereo speakers (1W/8 ohm per speaker), discrete amplifiers, 2 integrated dual array digital microphones

Ports & Connectors

Left Side:

  • 1x USB Type-C 10Gbps signaling rate (USB Power Delivery, DisplayPort 2.1); 1x HDMI 2.1; 1x headphone/microphone combo; 1x Thunderbolt 4 with USB Type-C 40Gbps signaling rate (USB Power Delivery, DisplayPort 2.1)

Right Side:

  • 1x USB Type-A 10Gbps signaling rate (charging); 1x security lock slot; 1x Thunderbolt 4 with USB Type-C 40Gbps signaling rate (USB Power Delivery, DisplayPort 2.1)

Keyboard

  • HP Premium Keyboard - spill resistant, backlit keyboard

Mouse

  • Microsoft Precision Touchpad with gesture support; Clickpad with multi-touch gesture support, taps enabled as default with image sensor and glass surface

Communications

  • WLAN: MediaT ek Wi-Fi 7 MT7925 (2x2) and Bluetooth 5.4 wireless card
  • NFC Mirage WNC XRAV-1

Camera

  • IR Camera (optional); 5 MP camera

Software

  • HP UEFI BIOS Certification level 2.7B
  • HP PC Hardware Diagnostics Windows
  • HP Privacy Settings
  • HP Touchpoint Customizer
  • HP Services Scan
  • Buy Microsoft Office (sold separately)
  • Battery Health Manager
  • HP Support Assistant
  • HP Connection Optimizer
  • HPX
  • HP Hotkey support

Security Management

  • HP Tamper Lock (select models)
  • HP TPM Configuration Utility
  • HP Sure Run Gen4
  • HP Client Security Manager
  • HP Sure Recover Gen4 with Embedded Reimaging
  • Secured-core PC capable
  • TPM 2.0 embedded security chip
  • Camera privacy shutter
  • HP Manageability Integration Kit
  • HP Sure Sense
  • HP Sure Start Gen6
  • Nano Security Lock Slot
  • HP Image Assistant Gen4.6

Security Software Licenses

  • HP Wolf Pro Security Edition

Fingerprint Reader

  • Fingerprint reader (select models)

Management Features

  • HP Power Manager
  • HP Connect for Microsoft Endpoint Manager
  • HP Manageability Integration Kit
  • Image Assistant

Power

  • 140W USB Type-C slim adapter

Battery Type

  • HP XL-Long Life 4 -cell, 74.5Wh polymer

Battery Life

  • Up to 14 hours and 30 minutes

Battery Recharge Time

  • Supports battery HP fast charge: approximately 50% in 30 minutes

Dimensions

Dimensions Vary by Configuration

  • 12.29 x 8.45 x 0.71 in; 31.22 x 21.46 x 1.81 cm

Weight Varies by Configuration

  • 3.46 lb; 1.57 kg

Ecolabels

  • EPEAT Gold with Climate+
