Lenovo ThinkPad P1 G7 Mobile Workstation - System Overview

Additional Information

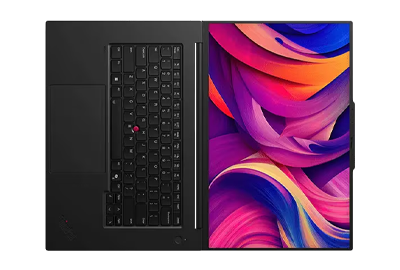

Lenovo ThinkPad G1 P7 Mobile Workstation keyboard

The supported Intel Cores Ultra CPUs offer performance cores or P-cores, efficient cores or E-cores, and low-power efficient cores or LPE-cores. The CPU also features an integrated NPU for AI applications like CoPilot. This is an extremely thin system at just .67-inches (17mm) and features an aluminum alloy chassis with black anodized finish. With a 90-watt hour capacity, the Lenovo ThinkPad P1 G7 Mobile Workstation can be charged up to 80% capacity in just 1x hour. All of the supported processors on this system support integrated graphics via Intel Arc Graphics. However, there are also 5x discrete graphics cards by NVIDIA that offer various levels of performance depending on your workload.

Discrete Graphics Cards
  • NVIDIA RTX 1000 Ada Generation Laptop GPU
  • NVIDIA RTX 2000 Ada Generation Laptop GPU
  • NVIDIA RTX 3000 Ada Generation Laptop GPU
  • NVIDIA GeForce RTX 4060 Laptop GPU
  • NVIDIA GeForce RTX 4070 Laptop GPU

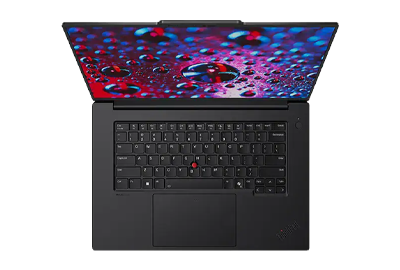

Lenovo ThinkPad G1 P7 Mobile Workstation top view

Monitor resolutions include 1920 x 1200 or up to 3840 x 2400 with an OLED option. There is also an optional touchscreen with the OLED display. This platform can run up to 3x independent monitors thanks to the 2x Thunderbolt 4 ports on the side of the system and an HDMI port. The Thunderbolt 4 ports can also be used for super-fast data transfers. It offers Wi-Fi 7.0 and Bluetooth 5.4 plus headphone and mic combo jack with a few more USB ports on the sides of the system. It offers Mil-Spec certification ensuring performance in harsh environments. The keyboard has Lenovo’s TrackPoint button in the middle and a touchpad. A biometric fingerprint reader is optional and is integrated with the power on button. A 5-megapixel camera at the top of the screen has a privacy shutter that can be slid into place when not using the camera. It offers Dolby Vision monitor support, paired with Dolby Atmos and Dolby Voice for advanced microphone features and noise suppression.

Lenovo ThinkPad P1 G7 Mobile Workstation - Specifications

Processor - 1 Socket

  • Intel H Series Core Ultra 5 processor
  • Intel H Series Core Ultra 7 processor
  • Intel H Series Core Ultra 9 processor
  • Up to 16 cores

Memory

  • Up to 64GB LPDDR5x 7467MT/s (CAMM2)
  • 1x LPCAMM2 connector, dual-channel
  • LPDDR5x-7500, maximum transfer speeds of up to 7467 MT/s

Storage

    Up to two drives, 2x M.2 2280 PCIe 4.0 x4 slots
  • Up to 8TB M.2 PCIe Gen4 NVMe Performance SSD drives
  • RAID 0/1 support

Graphics

    Processor Integrated

  • Intel Arc Graphics
  • Discrete

  • NVIDIA RTX 1000 Ada Generation Laptop GPU 6GB GDDR6
  • NVIDIA RTX 2000 Ada Generation Laptop GPU 8GB GDDR6
  • NVIDIA RTX 3000 Ada Generation Laptop GPU 8GB GDDR6
  • NVIDIA GeForce RTX 4060 Laptop GPU 8GB GDDR6
  • NVIDIA GeForce RTX 4070 Laptop GPU 8GB GDDR6

Audio

  • Dolby Atmos
  • Dolby Voice
  • 2x dual far-field mics
  • 2x speakers

Camera

  • 5MP RGB & infrared (IR) camera with webcam privacy shutter

Battery

  • Integrated Li-Polymer 90Wh battery
  • Supports Rapid Charge (60 minutes = 80% capacity)

  • Power Adapter (depends on model)
  • 135W slim tip (3-pin) AC adapter, 100-240V, 50-60Hz
  • 170W slim tip (3-pin) AC adapter, 100-240V, 50-60Hz
  • No power adapter

Supported Docking

  • USB-C Thunderbolt 4 dock
  • USB-C dock

Ports

  • 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
  • 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with USB PD 3.0 (135W input) and DisplayPort 1.4
  • 2x USB-C (Thunderbolt 4 / USB4 40Gbps), with USB PD 3.0 (135W input) and DisplayPort 2.1
  • 1x HDMI 2.1, up to 8K/60Hz
  • 1x Headphone / microphone combo jack (3.5mm)
  • 1x SD Express 7.0 card reader
  • 1x Security keyhole

Wireless

  • Intel WiFi 7 BE200 802.11BE (2 x 2)
  • WiFi & Bluetooth 5.4
  • Optional: Near Field Communication (NFC)
  • vPro: with vPro processors only

Chassis

    Dimensions (H x W x D)
  • (mm): 17.05mm x 354.40mm x 241.20mm
  • (inches): 0.67″ x 13.95″ x 9.49″

  • Weight
  • Starting at 1.82kg / 4.03lbs

  • Material: Aluminum

Operating System

  • Windows 11 Pro - Lenovo recommends Windows 11 Pro for business
  • Windows 11 Home
  • Windows 11 Home Single Language
  • Windows 11 DG Windows 10 Pro 64
  • Windows 10 Government Edition 64
  • Fedora Linux
  • Red Hat Enterprise Linux 9.2
  • Ubuntu Linux LTS
  • No preloaded system

Display

  • 16ʺ WQUXGA (3840 x 2400) OLED, 16:10 aspect ratio, 400nit, antireflective / antismudge, 100% DCIP3, DisplayHDR400, Dolby Vision, X-Rite Factory Color Calibration (FCC), TÜV Eyesafe certified for low blue light, touchscreen
  • 16ʺ WQXGA (2560 x 1600) IPS, 16:10 aspect ratio, 500nit, antiglare, 100% sRGB, 165Hz, X-Rite FCC, low blue light
  • 16ʺ WUXGA (1920 x 1200) IPS, 16:10 aspect ratio, 400nit, anti-glare, 100% sRGB, X-Rite FCC, low blue light

Monitor Support

    Monitors
  • Supports up to 4 independent displays (native display and 3 external monitors via 2x Thunderbolt 4, 1x USB-C, and 1x HDMI)

  • Max resolution for multiple external display:
  • 3x 3840x2160@60Hz (Thunderbolt 4, USB-C, and HDMI)

  • Max resolution for single external display:
  • Thunderbolt 4 supports up to 7680x4320@60Hz
  • HDMI supports up to 7680x4320@60Hz
  • USB-C supports up to 7680x4320@60Hz (with DSC)

ISV Certifications

  • Adobe
  • Altair
  • AVID
  • Autodesk
  • ANSYS
  • Barco
  • Bentley
  • Dassault
  • Esri
  • Nemetschek
  • PTC
  • Siemens

Certifications/Registries

  • ENERGY STAR (select models only)
  • EPEAT Gold
  • Forest Stewardship Council (FSC) packaging
  • Intel Evo Edition
  • MIL-STD 810H
  • RoHS Compliant
  • TCO 9.0
  • TUV Eyesafe (select models only)

ThinkShield Security

  • Discrete Trusted Platform Module (dTPM) 2.0
  • Fingerprint reader integrated with power button (match-on-chip)
  • Kensington Nano Security Slot
  • Facial recognition login via Windows Hello
  • Optional: Intel vPro platform security
  • Self-healing BIOS
  • Ultrasonic human presence detection
  • Webcam privacy shutter

Preloaded Software

  • Intel Unison (requires Windows 11 OS)
  • Lenovo Commercial Vantage
  • Lenovo Performance Tuner
