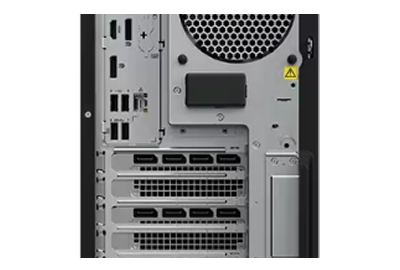

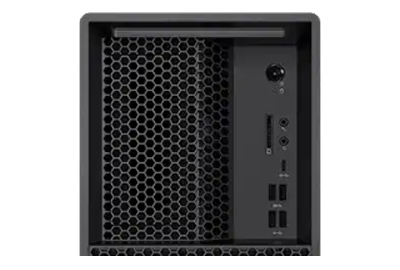

With discrete graphics, up to 4x additional monitors can be connected to the P3 Gen 2 workstation. GPUs with a TDP of up to 300W can be installed and that includes the NVIDIA RTX Pro 6000 Blackwell Max-Q workstation Edition GPU. PCIe cards are supported in one of 4x PCIe slots. There are 4x PCIe slots, 1x PCIe 5.0 x16 slot, 1x PCIe 4.0 x16 slot, and 2x PCIe 3.0 x1 slots. The system provides a number of USB ports with 5Gb/s, 10Gb/s, and 20Gb/s options.
DDR5 Registered DIMMs (RDIMMs) are supported along with Clocked Unbuffered DIMMs (CUDIMMs) which provide speed, stability, and improved signal integrity for better performance than traditional DIMMs. At full capacity, the system can be outfitted with up to 256GB of memory. Fixed power supplies available on this system include a 500W, 750W or 1100W PSU. GPU and storage support will be affected by the installed power supply.
