The Lenovo ThinkStation P910 Workstation can support a maximum of two processors, three full-width graphics cards, 16 DDR4 memory modules, and 14 storage devices—it's ideal for highly complex, resource intensive tasks. Tool-less access to components and Intel's Active Management Technology 9 make this workstation extremely easy to upgrade and manage.
The Lenovo ThinkStation P910 Workstation can support one or two Intel Xeon E5-2600 v4 processors, which provide a 20% increase in cores and cache compared to the previous generation. With dual processors the system can be loaded with up to 1TB of memory. This system can host up to 56TB of storage, depending on configuration, and up to three full-width NVIDIA graphics cards for demanding visualization applications.
This workstation supports up to two Intel Xeon E5-2600 v4 processors with up to 22 cores and 44 threads per socket. Dual-processor configurations enable “mega-tasking” for faster application performance. E5-2600 v4 processors provide over 20% more cache and cores than its predecessor and support DDR4 memory modules which are 12% faster than previous generation memory. A wide array of configuration options, from core count to processor power levels, allow administrators to choose a processor tailored towards specific workloads for optimum application performance.
In a dual-processor configuration, a maximum of 16 DDR4 modules support up to 1TB using 64GB load reduced DIMM modules. Both registered (RDIMM) and load-reduced (LRDIMM) memory modules can be installed on this system, but mixing different types of memory modules is not supported. RDIMMs are typically faster with lower latency, but LRDIMMs will provide a higher capacity of memory.
With support for up to 14 storage devices adding up to 56TB total storage, this platform features the largest storage capacity of any workstation on the market. Administrators can choose to configure the four internal storage bays with either one LFF drive, two SFF drives, or a mixture of LFF and SFF drives. The addition of a Front Access Storage Controller and Flex Bay Storage Controller will control the other six storage devices located in the Flex bays and Flex connector slots. Support for M.2 form factor NVMe drives maximizes storage performance and can be RAIDed to boost read/write performance for I/O intensive applications.

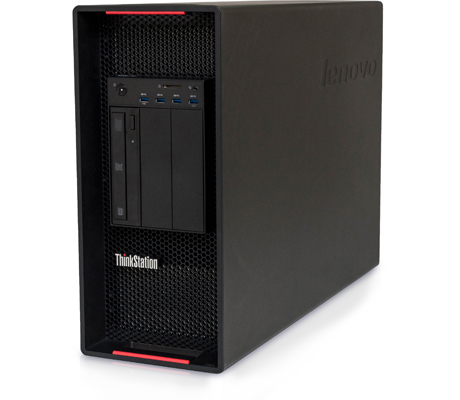

The front of the workstation has a microphone and headphone jack, optional nine-in-one media card reader, and four USB 3.0 ports. One of the front-mounted ports stays on even when the system is powered down and another can be used for diagnostics to record an error log on a smart device or USB stick. Another eight USB ports can be found at the back of the system which are split evenly between 2.0 and 3.0 technologies. A second nine-in-one card reader can also be found at the back, or administrators can choose to configure this system with an optional 29-in-1 card reader instead. There are a total of eight PCIe expansion ports:
The P910 can support for up to three graphics double-wide cards, including NVIDIA's Quadro M6000 which support up to four displays each. It also supports optional Firewire and Thunderbolt connections.

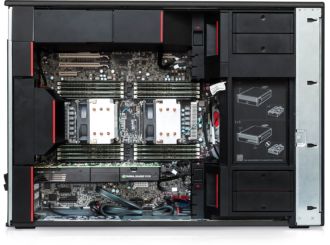

Without an operating system installed, Intel's Active Management Technology 9 provides remote management capabilities even when the system is powered off. Virtually all of the components have tool-less access, including the motherboard and power supply, which are indicated by red touch points to make for easy serviceability and upgrades.
The Lenovo ThinkStation P910 Workstation is a high performance, dual-processor system and Lenovo's top-of-the-line workstations. It features the largest storage capacity and I/O potential in the industry, and twice the amount of memory compared to mainstream dual processor workstations. A modular design supports a multitude of configuration options enabling users to personalize the workstation and provide optimum performance for just about any workload. Tool-less access to virtually every component makes for easy upgrades and Intel's E5-2600 v4 processors provide up to 22 cores to handle the most computationally demanding workloads with ease.
Installed CPU | Maximum quantity of PCIe x16 adapters per system (by power) |
---|---|
1 | 1x300W+1x75W or 2x150W |
2 | 2x300W+2x75W, or 1x300W+2x150W+1x75W, or 4x150W |
Adapter | Cores | Memory | Power | Connector | SLI |
---|---|---|---|---|---|
NVS 310 | 48 | 1GB | 19.5W | 2xDP | |
NVS 315 | 48 | 1GB | 19.5W | 2xDVI-I SL/2xDP | |
NVS 510 | 192 | 2GB | 35W | 4xmini DP | |
NVS 810 | 1024 | 4GB | 68W | 8xmini DP | |
Quadro K420 | 192 | 2GB | 41W | DVI-I DL+DP | |
Quadro K620 | 384 | 2GB | 45W | DVI-I DL+DP | |
Quadro K1200 | 512 | 4GB | 45W | 4xmini DP | |
Quadro K2200 | 640 | 4GB | 68W | DVI-I DL+2xDP | |
Quadro K4200 | 1344 | 4GB | 108W | DVI-I DL+2xDP | |
Quadro K5200 | 2304 | 8GB | 150W | DVI-I DL+DVI-D DL+2xDP | SLI |
Quadro M2000 | 768 | 4GB | 75W | 4xDP | |
Quadro M4000 | 1664 | 8GB | 120W | 4xDP | |
Quadro M5000 | 2048 | 8GB | 150W | DVI-I DL+4xDP | SLI |
Quadro M6000 | 3072 | 24GB | 250W | DVI-I DL+4xDP | SLI |
Quadro P400 | 256 | 2GB | 30W | 3xminiDP | |
Quadro P600 | 384 | 2GB | 40W | 4xminiDP | |
Quadro P1000 | 640 | 4GB | 47W | 4xminiDP | |
Quadro P2000 | 1024 | 5GB | 75W | 4xDP | |
Quadro P4000 | 1792 | 8GB | 105W | 4xDP | SLI |
Quadro P5000 | 2560 | 16GB | 180W | DVI-D DL+4xDP | SLI |
Quadro P6000 | 3840 | 24GB | 250W | DVI-D DL+4xDP | SLI |
Tesla K40 | 2880 | 12GB | 235W |
HDD 1-4:
Flex bay:
3.5" SATA HDD, 7.2K 6Gbs | 500GB/1TB/2TB/3TB/4TB/6TB/1TB hybrid/2TB hybrid |
2.5" SAS HDD, 15K 12Gbs | 300GB/600GB |
2.5" SAS HDD, 10K 12Gbs | 300GB |
2.5" SAS SSD, 12Gbs | 200GB/400GB/800GB |
2.5" SSD, SATA 6Gbs | 180GB/240GB/256GB/480GB/512GB with OPAL, 256GB/512GB/1TB without OPAL |
PCIe SSD, 2.5" | 400GB |
PCIe SSD, M.2 | 256 GB/512GB/1TB |
PCIe SSD adapter | 400GB (up to 4 per system, 2nd CPU is needed) |
Slot 1 | PCIe 3.0 x16 | full length, full height | |
Slot 2 | PCIe 2.0 x1 | full length, full height | |
Slot 3 | PCIe 3.0 x16 | full length, full height | |
Slot 4 | PCIe 2.0 x1 | full length, full height | |
Slot 5 | PCIe 2.0 x4 | half length, full height | |
Slot 6 | PCIe 3.0 x16 | full length, full height | CPU2 needed |
Slot 7 | PCIe 3.0 x16 | full length, full height | CPU2 needed |
Slot 8 | PCIe 2.0 x4 | full length, full height | CPU2 needed |
