Supermicro A+ SuperWorkstation 5014A-TT

With support for a single AMD Ryzen Threadripper PRO 5000WX/3000WX series processor, the Supermicro A+ SuperWorkstation 5014A-TT is designed for media and entertainment content creation, product design, engineering simulation, AI, and deep learning. The CPU supports 8x DIMM DDR4 slots for a maximum memory capacity of up to 2TB. 4x internal 3.5-inch / 2.5-inch SATA3 drive bays are available on this system as well as 2x front 2.5-inch SATA3 drive bays. Peripheral bays include 2x 5.25-inch bays. System expansion is achieved via 6x PCIe 4.0 x16 slots found on the system board.

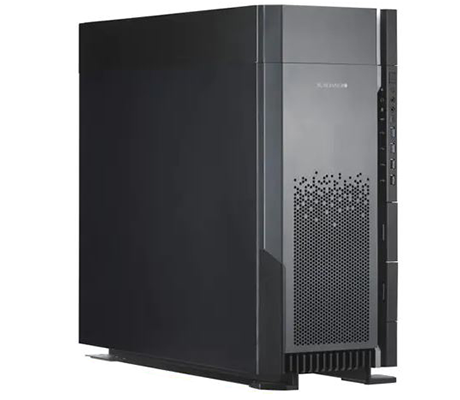

Supermicro 5014A-TT side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

Supermicro A+ SuperWorkstation 5014A-TT - System Overview

Supermicro SuperWorkstation 5014A-TT front detailSupermicro 5014A-TT detail top

Additional Features

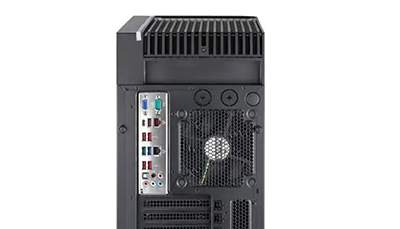

The Supermicro 5014A-TT workstation houses a single AMD Ryzen Threadripper PRO 5000WX/3000WX processor and 8x DIMM slots on its system board. Optional high-performance Closed-loop liquid cooling for the CPU is available ensuring continued performance under extreme load. Ports on the back of the system include an integrated 10GbE LAN port and 1GbE LAN port shared with integrated platform management interface (IPMI). The system is powered by a 2000W Platinum-level power supply unit (PSU).

Fully configured, the maximum memory capacity is 2TB of registered error correcting code (ECC) DDR4 3200 MHz memory modules. In addition to the storage mentioned above, the Supermicro A+ 5014A-TT can also support 4x NVMe M.2 drives on the system board which offers 4x PCIe 4.0 x4 slots. The board mounted M.2 drives can be combined in a RAID of 0, 1, 5 or 10. 2x U.2 NVMe drive slots on the system board also offer RAID configurations of 0 or 1. This system requires a GPU for monitor support of which there are several available:

Supported GPUS:

NOTE: This system is only sold as a completely assembled system with a minimum CPU, 2x DIMMs, and one SSD/HDD.

Supermicro A+ SuperWorkstation 5014A-TT - Specifications

Processor - 1 Socket

  • AMD Ryzen Threadripper PRO 5000WX/3000WX Series processor

    • Socket:

  • sWRX8/SP3

    • Physical Cores:

  • 64x

    • Virtual Threads:

  • 128x

    • TDP:

  • 280W

Motherboard

  • Super M12SWA-TF

Memory

    Memory Capacity:

  • 8 x DIMM slots
  • Supports up to 2TB Registered ECC DDR4 3200-MHz SDRAM
  • 8-channel memory bus

Drive Bays

    Drive Bays:

  • 4 x internal fixed 3.5"/2.5" SATA3 drive bays
  • 2 x front fixed 2.5" SATA3 drive bays

    • Peripheral Bays:

  • 2 x 5.25" drive bays

Expansion Slots

    PCIe:

  • 6 x PCI-E 4.0 x16 slots

    • M.2:

  • M.2 Interface: 4 PCI-E 4.0 x4
  • Form Factor: 2280, 22110
  • Key: M-Key

    • U.2

  • Interface: 2 U.2 Sockets
  • Software RAID 0,1 support

On-Board Devices

    Chipset:

  • AMD WRX80

    • SATA:

  • SATA3 (6Gbps); RAID 0, 1, 5, 10

    • Network Controllers:

  • 10G LAN: Single LAN via Marvel AQC113C 10G Ethernet Controller
  • 1GbE LAN: Single LAN with Intel® i210AT Enternet Controller (shared with IPMI)

    • Audio:

  • 7.1 channel HD Audio by Realtek LC4050H + ALC1220

Input / Output

    SATA:

  • 4 x SATA3 (6Gbps) ports

    • LAN:

  • 1 x RJ45 10GBase-T Ethernet LAN port
  • 1 x RJ45 GbE Ethernet LAN port (shared with IPMI)

    • USB:

  • 1 x USB 3.2 Gen2x2 port (Type C, 20Gbps)
  • 5 x USB 3.2 Gen2 ports (4 Type A, 1 front Intel Type C header, 10Gbps)
  • 5 x USB 3.2 Gen1 ports (3 Type A, 1 via header)
  • 2 x USB 2.0 via header

    • Video:

  • 1 x VGA port (dedicated for IPMI)

    • Audio:

  • 7.1 HD Audio with optical S/PDIF

    • Serial Port / Header:

  • 1 x COM port (rear)

    • TPM:

  • 1 x TPM 2.0 Header

Management

  • Intel Node Manager
  • IPMI 2.0
  • SSM, SPM, SUM
  • SuperDoctor 5
  • Watchdog

System Cooling

    Fans:

  • 1 x 12cm rear exhaust fan
  • 2 x 12cm front cooling fans
  • 3 x 12cm top cooling fans (optional)

    • Water Cooling:

  • Optional high-performance closed-loop water cooling for CPU

Power Supply

  • 2000W PS/2 Multi-Output Power Supply

Chassis

    Form Factor:

  • Full Tower with optional rack mount kit (6U)

    • Enclosure:

    Height: 21.06" (535mm)

    Width: 8.74" (222mm)

    Depth: 22.56" (573mm)

Supermicro A+ SuperWorkstation 5014A-TT - Documentation

Supermicro A+ SuperWorkstation 5014A-TT User's Manual
