Tyan Thunder HX FT65TB5652 B5652F65TV6E2H-2T-N Workstation

Providing 6x 3.5-inch SATA and 2x 2.5" NVMe U.2 hot swap tool-less drive bays, the Tyan Thunder HX FT65TB5652 B5652F65TV6E2H-2T-N Server Tower features a single 4th generation Intel Xeon Scalable processor. At full capacity this system can also provide up to 2TB of DDR5 memory offering 1.6x more bandwidth than DDR4 memory modules. There is a single PCIe 5.0 x8 slot and 4x PCIe 5.0 x16 slots that can be outfitted with up to full-height, full-length GPUs at up to 300W each.
Configure

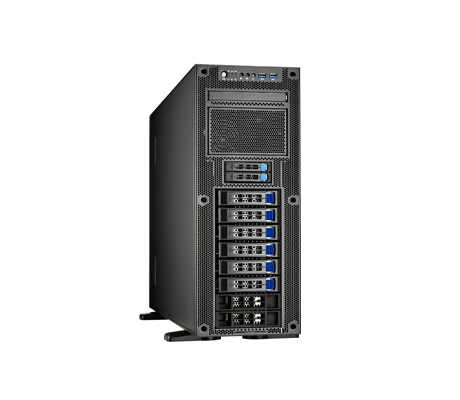

Tyan Thunder HX FT65TB5652 B5652F65TV6E2H-2T-N Workstation front view
Intel Partner Gold NVIDIA Elite Partner
Configure

Tyan Thunder HX FT65TB5652 B5652F65TV6E2H-2T-N Workstation - System Overview

Additional Information

With support for up to 4x high-performance GPUs, The Tyan Thunder HX FT65TB5652 B5652F65TV6E2H-2T-N is designed to support applications in high-performance computing, AI, AI training and Inference, plus scientific and analytic simulation. It offers 2x 10GbE ports and a GbE port on the back for network communications. A dedicated mLAN port is for out of band management of the system. This platform can also be rack mounted using an optional rail kit.

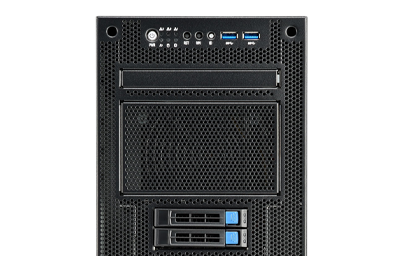

Tyan Thunder HX FT65TB5652 B5652F65TV6E2H-2T-N Workstation front Tyan Thunder HX FT65TB5652 B5652F65TV6E2H-2T-N Workstation rear

Tyan Thunder HX FT65TB5652 B5652F65TV6E2H-2T-N Workstation - Specifications

Processor - 1 Socket

  • 4th Gen. Intel Xeon Scalable Processors
  • TDP up to 350W

    • Socket:

  • 1x LGA4677

    • Chipset:

  • Intel C741

Motherboard

  • S5652AGM3NRE-2T

Memory

    Memory Slots

  • 8x DDR5 DIMM slots
  • 8-channel memory architecture

    • Memory Type/Speed

  • RDDR5 4800 w/ ECC (1.1V) when 2DPC/1DPC / 3DS
  • RDIMM DDR5 4800 w/ ECC (1.1V) when 2DPC/1DPC

    • Capacity

  • Up to 1,024GB RDIMM/ 2,048GB 3DS RDIMM DDR5 4800/ *Follow latest Intel DDR5 Memory POR

Drive Bays

  • 2x 2.5" Hot-Swap NVMe HDD/SSDs / 6x 3.5"/2.5" Hot- Swap SSD/HDD

LAN

  • 2x 10GbE ports + 1x GbE ports + 1x GbE dedicated for IPMI
  • Intel I210 / Intel X550
  • Realtek RTL8211F

Input / Output

  • 2x USB2.0 ports (@ rear) / 2x USB3.2 Gen.1 ports (@ rear)
  • 1x DB-9 COM port
  • 1x D-Sub 15-pin port
  • 1x 2x5-pin header
  • 2x 10GbE ports + 1x GbE ports + 1x GbE dedicated for IPMI

Expansion Slots

  • 1x PCIe Gen.5 x8 slot / 4x PCIe Gen.5 x16 slot

Chassis

    Enclosure

    Height: 176mm (6.93 in.)

    Width: 438mm (17.245 in.)

    Depth: 650mm (25.59 in.)

Power Supply

  • 1,200 Watts (110-115Vac input) / 1,500 Watts (115- 200Vac input) / 2,000 Watts (200-240Vac)
  • 80 plus Gold (200-240Vac, 2,000W) ) / 80 plus Platinum (100-240Vac, 1,500W)

System Fans

  • 2x 8038 exhausted fans module at rear / 3x 12cm fans

System Management

  • Aspeed AST2600 management controller
  • 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
  • IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface

Tyan Thunder HX FT65TB5652 B5652F65TV6E2H-2T-N Workstation - Documentation

Tyan Thunder HX FT65TB5652 B5652F65TV6E2H-2T-N Workstation User Manual Tyan Thunder HX FT65TB5652 B5652F65TV6E2H-2T-N Workstation Data Sheet Tyan 4th Gen Intel Xeon CPU Catalog
