Tyan Thunder HX FT65TB5652 B5652F65TV6E2H-G Server/Workstation Tower

Supporting multiple high performance GPU cards, the Tyan Thunder HX FT65TB5652 B5652F65TV6E2H-G Server/Workstation Tower features a single 4th generation Intel Xeon Scalable processor. With a maximum TDP of up to 350W, CPUs with 8 to 60 cores can be installed. This system offers 2x 2.5” hot-swap U.2 NVMe HDD/SSD drive bays on the front panel along with 6x 3.5" SATA/SAS SSD/HDD drive bays and 2x dummy trays underneath. The system also supports 1x M.2 PCIe 3.0 x4 card with a 2280 size. A total of 8x memory module slots on the motherboard are compatible with DDR5-4800MHz.
Configure

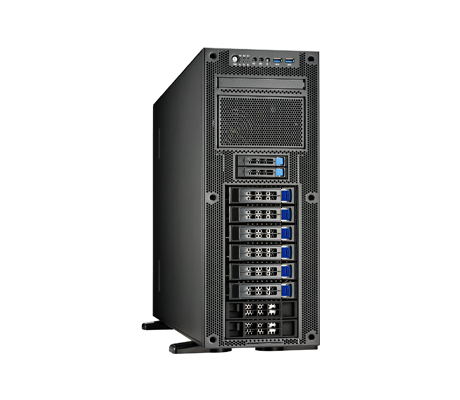

Tyan Thunder HX FT65TB5652 B5652F65TV6E2H-G Server Workstation side view
Intel Partner Gold NVIDIA Elite Partner
Configure

Tyan Thunder HX FT65TB5652 B5652F65TV6E2H-G Server/Workstation Tower - System Overview

Memory capacities include up to 1TB of RDIMM, 2TB of LRDIMM, or up to 2TB using 3DS RDIMM/LRDIMMs to deliver exceptional performance. The 4U pedestal workstation server supports a maximum of 4x double wide, full-height, full-length GPUs loaded into PCIe Gen5 slots allocated for expansion cards. A total of 5x PCIe Gen5 slots can be found on the system. One of the expansion slots has a x8 interface and the remaining 4x slots feature a x16 interface. It also supports 1x GbE port and 1x GbE dedicated for an IPMI port on the rear. SAS drives are supported but will require a SAS controller card. This platform can support either a Windows Server 2012 or Windows 11, depending onyour needs. To power the Thunder HX FT65TB5652 B5652F65TV6E2H-G Workstation, either an 80 plus Platinum 1500W or 80 plus Gold 2000W PSU can be installed.

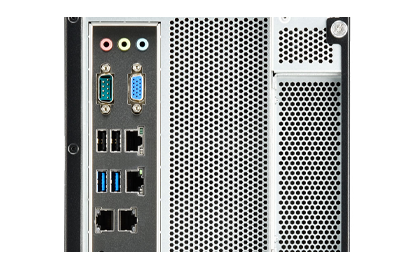

Tyan Thunder HX FT65TB5652 B5652F65TV6E2H-G Server/Workstation Tower front view Tyan Thunder HX FT65TB5652 B5652F65TV6E2H-G Server/Workstation Tower rear view

Tyan Thunder HX FT65TB5652 B5652F65TV6E2H-G Server/Workstation Tower - Specifications

Processor - 1 Socket

  • 4th Gen Intel Xeon Scalable Processor
  • Up to 36 cores
  • Max up to 350W
  • Socket 1x LGA4677

Chipset

    Intel C741

Memory

  • 8x DDR5 DIMMs, 12-channels per CPU
  • Up to 1,024GB RDIMM/ 2,048GB 3DS RDIMM DDR5 4800 memory

Drive Bays

  • 2x 2.5" Hot-Swap NVMe HDD/SSDs
  • 6x 3.5"/2.5" Hot- Swap SSD/HDD

I/O Ports & Expansion Slots

    I/O Ports:

  • 2x USB2.0 ports (@ rear)
  • 2x USB3.2 Gen.1 ports (@ rear)
  • COM: 1x DB-9 COM port
  • VGA: 1x D-Sub 15-pin port
  • Audio: 1x 2x5-pin header
  • RJ-45: 1x GbE ports + 1x GbE dedicated for IPMI

    • Expansion Slots

  • 1x PCI-E Gen.5 x8 slot
  • PCIe Gen.5 x16 slot

LAN

    Quantity

  • 1x GbE port + 1x GbE dedicated for IPMI

    • PHY

  • Realtek RTL8211F

Power (1 + 1 Redundancy)

  • 1,200 Watts (110-115Vac input) / 1,500 Watts (115- 200Vac input) / 2,000 Watts (200-240Vac)
  • AC 100~240V/12~15A

Graphics

    Connector Type

  • D-Sub 15 pin

    • Resolution

  • Up to 1920 x 1200

    • Chipset

  • Aspeed AST2600

Chassis

    1U Rack

    Dimensions (D x W x H)

  • 25.59" x 17.245" x 6.93" (650 x 438 x 176mm)

Management

    AST2600 iKVM Feature

  • 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub

    • AST2600 IPMI Feature

  • IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface

Tyan Thunder HX FT65TB5652 B5652F65TV6E2H-G Server/Workstation Tower - Documentation

Tyan Thunder HX FT65TB5652 B5652F65TV6E2H-G Server/Workstation Tower Data Sheet Tyan Thunder HX FT65TB5652 B5652F65TV6E2H-G Server/Workstation Tower Service Engineer's Manual
