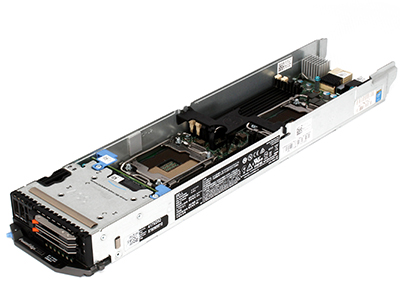

The FC430 is a quarter-width compute module that can support two Xeon E5-2600 v4 processors or a single E5-1600 v3 processor. Up to eight FC430 compute modules can be installed in the FX2 chassis for a maximum of 2TB of memory. The FC430 can also be used with the other compute modules or the FD332 storage sled for access to 16 additional drives, which can be split between two servers. Two device bays up front supports either two 1.8-inch uSATA drives or an optional low-latency configuration that combines a single 1.8-inch drive with two QSFP+ compact, hot-pluggable transceiver connectors for Ethernet or Infiniband connectivity. Each compute sled has access to one PCIe 3.0 slot on the FX2s chassis. With an optimal balance of memory and storage, this module is perfect for high-speed I/O and mainstream enterprise workloads, including mid-sized virtualization and database environments. The low-latency Infiniband configuration is ideal for High Frequency Trading and High Performance Computing.
Designed for use in Dell's FX2s and FX2 2U enclosures, the Dell EMC PowerEdge FC640 server is a half-width, two-socket compute module. It provides dual 1st or 2nd generation Intel Xeon Scalable processors with significantly improved performance, and up to 2TB of memory. You can install up to four of these compute sleds in the FX2 chassis supporting 2 processors each for eight processors total. With 4x of these half-width platforms installed the FX2 chassis will support a maximum of 8TB of memory—all in a 2U chassis. Each chassis is like a mini server cluster. Up to 20 individual FX2 chassis can be daisy-chained together providing an exceptionally scalable infrastructure. This system is ideal for a variety of high-performance applications.

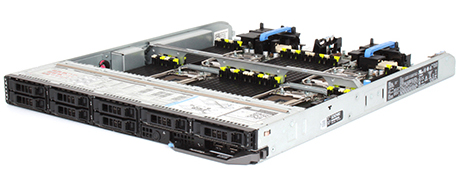

The FC830 is a four socket, full-width compute module that supports the Xeon E5-4600 v3 or v4 processors. It can be used in conjunction with the other compute modules or with the FD332 for Direct Attached Storage. The FX2s chassis can support two of the full-width FC830 compute sleds or a single node with four FC430s, two FC630s, or two FD332 storage modules. Each FC830 has 48 DDR4 DIMM slots, 12 slots per processor, for 1.5TB of memory per sled with transfer speeds of up to 2400 MT/s when paried with an appropriate Xeon v4 processor. The FC830 also features generous, scalable on-board storage with either eight 2.5-inch drives or an optional configuration with 16 x 1.8" SAS or SATA HDDs or SSDs. The FC830 is ideal for the database tier of web tech, HPC environments or large-scale virtualization.
Shop FC830 Compute Module

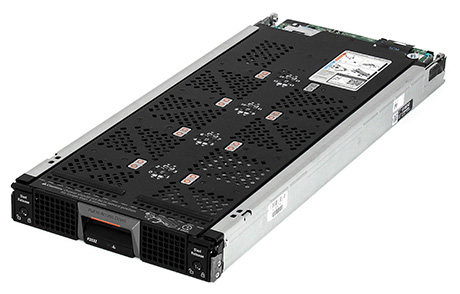

Each compute module features its own hot-plug storage, either SAS or SATA HDDs or SSDs. For more storage, Administrators can install up to three FD332 storage blocks for dense, scalable DAS. Each FD332 supports up to 16 hot-plug direct attached SFF drives either SAS or SATA SSDs or HDDS. An optional dual RAID controller provides split access to the supported drives. Depending on configuration up to three FD332s can be installed on the system with either the FC430, FC630, or the FC830 compute sleds.

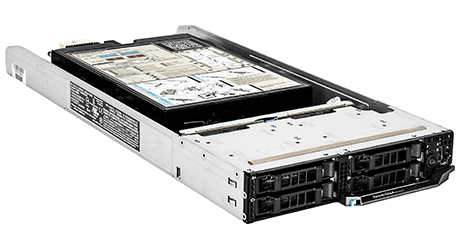

The FM120x4 is a half-width compute module designed specifically for the FX2 enclosure without any PCIe slots. Offering a cost effective option, each compute sled features four Atom C2000 processors. The C2000 Atom processors are described by Intel as a system-on-a-chip (SoC). With four modules installed up to 16 micro-servers are available in each FX2 chassis. The FM120x4 is the only compute module that uses the Intel Atom C2000 System on a Chip processor with up to eight cores. Each module supports four processors and each processor supports two DIMM modules, UDIMM only, for 8 DIMMS per sled. Each processor also supports one 2.5-inch HD or two 1.8-inch SSDs. No PCI slots are available and communications are handled by the pass through, with 2 per processor for 8 total that are capable of 1Gb through the FX2 chassis. Only software RAID is supported. This system is a lower cost alternative to the FX2s and is ideal for static web hosting and light-weight processing.
NDC mezzanine cards supported in FX2s chassis configuration:
