The FC430 is a quarter-width compute module that can support two Xeon E5-2600 v4 processors or a single E5-1600 v3 processor. Up to eight FC430 compute modules can be installed in the FX2 chassis for a maximum of 2TB of memory. The FC430 can also be used with the other compute modules or the FD332 storage sled for access to 16 additional drives, which can be split between two servers. Two device bays up front supports either two 1.8-inch uSATA drives or an optional low-latency configuration that combines a single 1.8-inch drive with two QSFP+ compact, hot-pluggable transceiver connectors for Ethernet or Infiniband connectivity. Each compute sled has access to one PCIe 3.0 slot on the FX2s chassis. With an optimal balance of memory and storage, this module is perfect for high-speed I/O and mainstream enterprise workloads, including mid-sized virtualization and database environments. The low-latency Infiniband configuration is ideal for High Frequency Trading and High Performance Computing.
The Dell PowerEdge FC630 is a half-width, two-socket compute module that can support a maximum of two Xeon E5-2600 v3 or E5-2600 v4 processors. Up to four FC630s can be installed in the FX2s chassis and each automatically connects maps to two of the eight PCIe modules. The FC630 can also be used in conjunction with other compute modules or the PowerEdge FD332 storage module for dense direct attached storage. The FC630 has 24 DIMM slots that can provide up to 1.5TB of memory. With four FC630 sleds installed in the FX2s enclosure, a maximum of 6TB of memory is available. Up front there's room for two 2.5-inch drives or another FC630 chassis that supports up to eight 1.8-inch SSDs. This unit is deal for large databases or highly virtualized environments.
Designed for use in Dell's FX2s and FX2 2U enclosures, the Dell EMC PowerEdge FC640 server is a half-width, two-socket compute module. It provides dual 1st or 2nd generation Intel Xeon Scalable processors with significantly improved performance, and up to 2TB of memory. You can install up to four of these compute sleds in the FX2 chassis supporting 2 processors each for eight processors total. With 4x of these half-width platforms installed the FX2 chassis will support a maximum of 8TB of memory—all in a 2U chassis. Each chassis is like a mini server cluster. Up to 20 individual FX2 chassis can be daisy-chained together providing an exceptionally scalable infrastructure. This system is ideal for a variety of high-performance applications.
The FC830 is a four socket, full-width compute module that supports the Xeon E5-4600 v3 or E5-4600 v4 processors. Like the other compute modules, with the exception of the FX120x4, the FC830 can be used in conjunction with the other compute modules or with the FD332 for Direct Attached Storage. The FX2s chassis can support two full-width FC830 compute sleds or a single FC830 node with either four FC430s, two FC630s, or two FD332 storage modules. Each FC830 has 48 DDR4 DIMM slots, 12 slots per processor, for 1.5TB of memory per sled with transfer speeds of up to 2400 MT/s. The FC830 also features generous, scalable on-board storage with either 8 x 2.5-inch drives or an optional configuration with 16 x 1.8-inch SAS or SATA HDDs or SSDs. The FC830 is ideal for the database tier of web tech, HPC environments and large-scale virtualization.

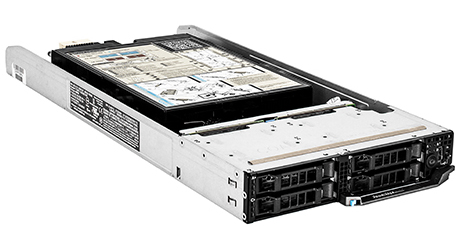

The FM120x4 is a half-width compute module designed specifically for the FX2 enclosure without any PCIe slots. Offering a cost effective option, each compute sled features four Atom C2000 processors. The C2000 Atom processors are described by intel as a system-on-a-chip (SoC). With four modules installed up to 16 micro-servers are available in each FX2 chassis. The FM120x4 is the only compute module that uses the Intel Atom C2000 System on a Chip processor with up to eight cores. Each module supports four processors and each processor supports two DIMM modules, UDIMM only, for 8 DIMMS per sled. Each processor also supports one 2.5-inch HD or two 1.8-inch SSDs. No PCI slots are available and communications are handled by the pass through, with 2 per processor for 8 total that are capable of 1Gb through the FX2 chassis. Only software RAID is supported. This system is a lower cost alternative to the FX2s and is ideal for static web hosting and light-weight processing. The FM120x4 compute module is not compatible with the FD332 storage module.
