Product Details:

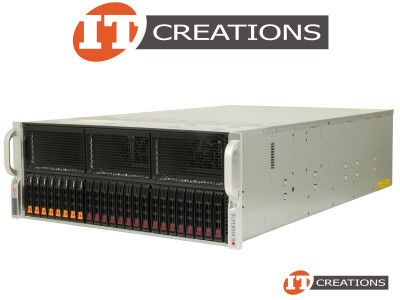

SUPERMICRO GPU SUPERSERVER SYS-420GP-TNR RACK 2.5 INCH SFF 24 BAY HSHD HSPS DUAL ROOT GPU SYSTEM PRE CONFIGURATION 4U SERVER CHASSIS ( CSE-418G2TS ) - SUPER X12DPG-OA6 MOBO ( 2 ) TWO FCLGA4189 SOCKETS ( COMPATIBLE WITH 3RD GEN INTEL XEON SCALABLE - ICE LAKE ) ( 32 ) THIRTY TWO DDR4 DIMM SLOTS ( 2 ) TWO 1GBE BASE-T LAN PORTS ( INTEL I350 ) UP TO ( 12 ) TWELVE PCI-E 4.0 INTERFACES ( 12X16 FHFL - 10 DUAL WIDTH GPUs SUPPORTED ) ( 1 ) ONE OCP 3.0 AIOM MEZZANINE SLOT - ( 2 ) TWO PCI-E 4.0 X4 NVME / SATA M.2 SLOTS ( BOOT DRIVE ONLY ) + SMALL FORM FACTOR 24B / 24SFF ( SUPPORTS X8 PCIE GEN4 NVME U.2 SSD ) HOT SWAP HARD DRIVE HOT SWAP POWER SUPPLY
MANUFACTURER: SUPERMICRO
PART NUMBER: SYS-420GP-TNR-NEW
CONFIGURATION INCLUDES: ( 1 ) ONE 4U RACK SERVER CHASSIS ( 2 ) TWO HEATSINKS ( 4 ) FOUR 2000W POWER SUPPLIES
NOTE:
- THIS PRE-CONFIGURATION OPTION DOES NOT INCLUDE ANY PROCESSORS, MEMORY OR STORAGE
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE IF YOU DESIRE AN UPGRADED CONFIGURATION
PROCESSOR SUPPORT
PROCESSOR SOCKET TYPE: FCLGA4189 SOCKET
MAX NUMBER PROCESSOR SUPPORTED: ( 2 ) TWO CPUs
PROCESSOR COMPATIBILITY: 3RD GEN INTEL XEON SCALABLE PROCESSORS
PROCESSOR TDP: UP TO 270W
NOTE:
- NO PROCESSORS INCLUDED WITH THIS CONFIGURATION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
MEMORY SUPPORT
MEMORY SUPPORTED: ( 32 ) THIRTY TWO DIMM SLOTS
MEMORY SIZE: UP TO 8TB RDIMM / LRDIMM ( 2DPC )
MEMORY SPEEDS: UP TO DDR4-3200MHZ ( SPEEDS DEPENDENT ON PROCESSOR MODEL )
NOTE:
- NO DIMMs INCLUDED WITH THIS CONFIGURATION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
STORAGE SUPPORTS
HARD DRIVE SUPPORT: ( 24 ) TWENTY FOUR 2.5 INCH SFF HOT SWAP HARD DRIVES
ADDITIONAL STORAGE SUPPORT: ( 2 ) TWO PCIE 3.0 X4 NVME M.2 ( 2280 / 22110 )
NOTE:
- NO STORAGE INCLUDED WITH THIS CONFIGURATION
- OPTIONAL STORAGE CARD AND CABLES REQUIRED FOR SAS / NVME STORAGE OPTIONS - NOT INCLUDED WITH THIS CONFIGURATION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
EXPANSION SLOT SUPPORT
NUMBER OF PCI SLOTS SUPPORT: UP TO ( 12 ) TWELVE PCIE SLOTS ( 1 ) ONE OCP MEZZANINE SLOTS
PCI INTERFACE TYPE: PCI-E 4.0 - INTERFACES MAY VARY ( LANE SPEEDS ARE DEPENDENT ON INTERFACE POPULATION )
- 12X16 - FULL HEIGHT / HIGH PROFILE
- ( 1 ) ONE OCP 3.0 AIOM MEZZANINE SLOTS
NETWORKING
- ( 2 ) TWO 1GBE LAN PORT ( INTEL I350 - RJ45 / RJ-45 )
- ( 1 ) ONE 1GBE DEDICATED BMC LAN PORT ( RJ45 / RJ-45 )
NOTE:
- NETWORK CARDS ARE OPTIONAL - NO NICs INCLUDED WITH THIS CONFIGURATION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
POWER SUPPLY
- ( 2 ) TWO 2000W POWER SUPPLIES
