Product Details:

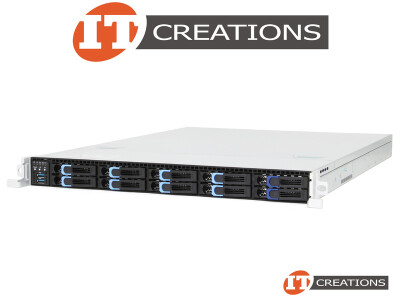

MITAC / TYAN THUNDER SX GT62F-B5630 1U1S RACK 2.5 INCH SFF 10 BAY HSHD HSPS PRE CONFIGURATION 1U SERVER CHASSIS ( GT62FB5630 ) - SMALL FORM FACTOR 10B / 10SFF ( 2SFF SSD / HDD + 8SFF PCIE NVME ) HOT SWAP HARD DRIVE HOT SWAP POWER SUPPLY ( X2 650W PS )
MANUFACTURER: MITAC
PART NUMBER: B5630G62FV2E8HR-NEW
CONFIGURATION INCLUDES: ( 1 ) ONE 1U CHASSIS ( 1 ) ONE HEATSINK ( 2 ) TWO 650W HOT SWAP POWER SUPPLIES ( 1 ) ONE RACK MOUNT RAIL KIT ASSEMBLY
NOTE:
- THIS PRE-CONFIGURATION OPTION DOES NOT INCLUDE ANY PROCESSORS, MEMORY OR STORAGE
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE IF YOU DESIRE AN UPGRADED CONFIGURATION
PROCESSOR SUPPORT
PROCESSOR SOCKET TYPE: FCLGA3647
MAX NUMBER PROCESSOR SUPPORTED: UP TO ( 1 ) ONE CPU
PROCESSOR COMPATIBILITY: 2ND GEN INTEL XEON SCALABLE PROCESSOR SERIES ( CASCADE LAKE ) / 1ST GEN INTEL XEON SCALABLE PROCESSOR SERIES ( SKYLAKE )
PROCESSOR TDP: UP TO 205W
NOTE:
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
MEMORY SUPPORT
MEMORY SUPPORTED: UP TO ( 12 ) TWELVE DDR4 DIMM SLOTS
MEMORY GENERATION: DDR4
MEMORY TYPE: RDIMM / RDIMM 3DS / LRDIMM / LRDIMM 3DS
RDIMM MEMORY SIZE: UP TO 384GB
LRDIMM MEMORY SIZE: UP TO 768GB
RDIMM 3DS / LRDIMM 3DS MEMORY SIZE: UP TO 1536GB
MEMORY SPEEDS: UP TO DDR4 2933MHZ ( SPEEDS DEPENDENT ON PROCESSOR MODEL )
NUMBER OF CHANNELS: 6 CHANNELS ( PER CPU )
NOTE:
- MIXING OF LRDIMMs AND RDIMMs ARE NOT SUPPORTED
- MEMORY CAPACITY AND SPEEDS MAY VARY, BASED ON PROCESSOR MODEL
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
STORAGE SUPPORTS
HARD DRIVE SUPPORT: UP TO ( 10 ) TEN 2.5 INCH SFF HOT SWAP HARD DRIVE
STORAGE TYPE: HDD / SSD / M.2
STORAGE PROTOCOL SUPPORT: SAS3 ( 12GB/S ) / SATA3 ( 6GB/S ) / PCIE NVME
NOTE:
- THIS CONFIGURATION IS 2SFF SSD / HDD + 8SFF PCIE NVME
- NO DRIVES INCLUDED WITH THIS CONFIGURATION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
EXPANSION SLOT SUPPORT
NUMBER OF PCI SLOTS SUPPORT: UP TO ( 1 ) ONE PCI-E INTERFACE ( 1 ) ONE OCP 2.0 MEZZANINE SLOT
PCI INTERFACE TYPE: PCI-E 3.0 - INTERFACES MAY VARY
- 1X16 FULL HEIGHT, FULL LENGTH
- 1X8 OCP V2.0 MEZZ SLOT
NOTE:
- PCIE RISER BOARD ( M2091 ) IS PRE-INSTALLED WITH STORAGE CARD ( M2093 )
- NO GPUs INCLUDED WITH THIS CONFIGURATION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
NETWORKING
- ( 1 ) ONE GBE LAN PORT ( REALTEK RTL8211E )
POWER SUPPLY
- ( 2 ) TWO 650W POWER SUPPLIES ( HSPS / RPSU )
OPERATING SYSTEMS SUPPORTED
- WINDOWS SERVER 2016 STANDARD X64 EN
- WINDOWS SERVER 2012 R2 STANDARD X64 EN
- WINDOWS 10 PRO X64 EN
- WINDOWS 8.1 ENTERPRISE X64 EN
- LINUX RHEL 6.9 X64 EN
- LINUX RHEL 7.3 X64 EN
- LINUX RHEL 7.4 X64 EN
- LINUX SLES 12 SP2 X64
- LINUX CENTOS 7.3 X64 EN
- LINUX UBUNTU 16.04 X64
- LINUX UBUNTU 17.04 X64
FORM FACTOR
- 1U RACKMOUNT
- 24.6 INCH X 17.2 INCH X 1.72 INCH
PLEASE BE ADVISED:
THE OPTIONS ABOVE ARE BASED ON MITAC COMPUTING TECHNICAL GUIDE DOCUMENTATION DATED AUGUST 2017 - INFORMATION MAY CHANGE
