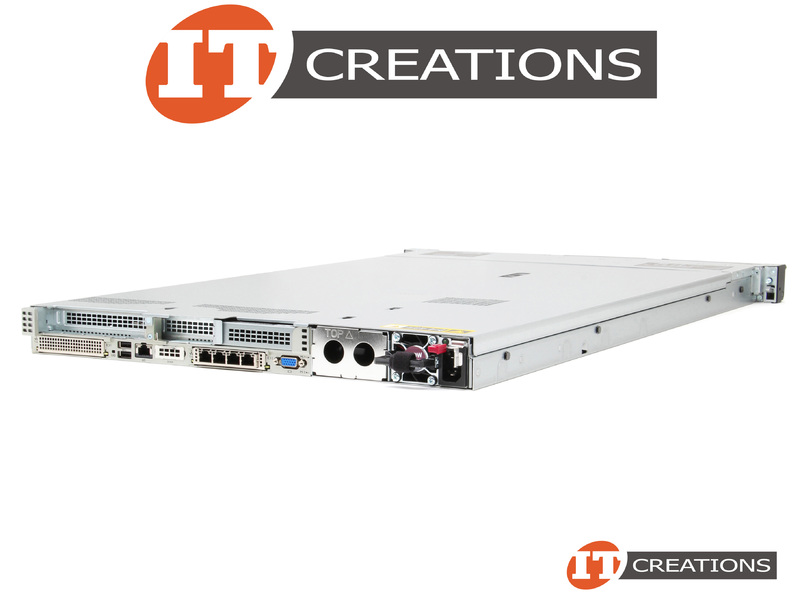

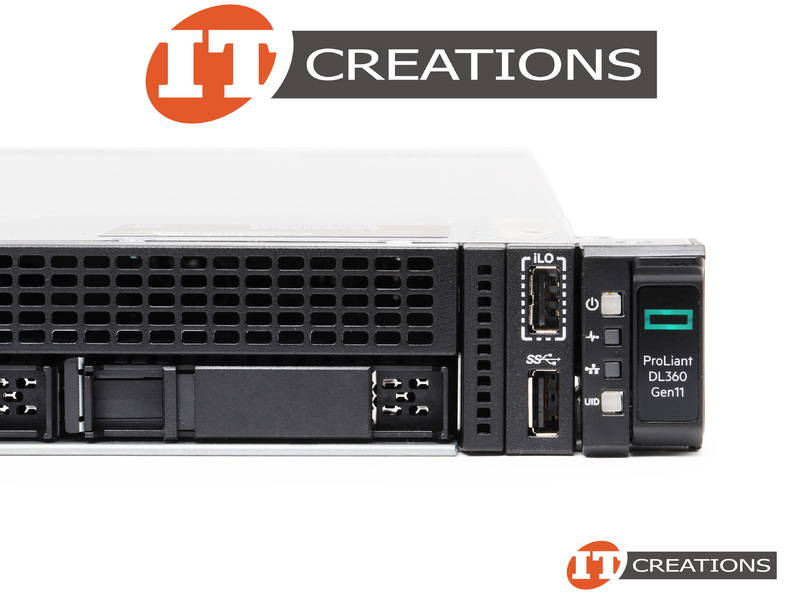

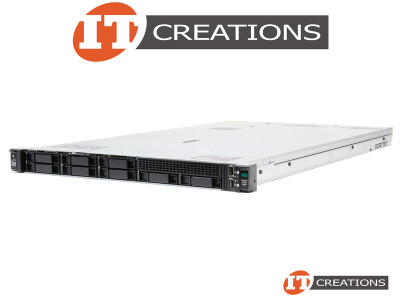

HPE PROLIANT DL360 GEN11 2.5 INCH 8 BAY HPHD HPPS 1U SERVER CHASSIS - ( STANDARD SERVER CHASSIS (HP DL360 G11 2.5 8B)

Product Details:

HPE PROLIANT DL360 GEN11 2.5 INCH 8 BAY HPHD HPPS 1U SERVER CHASSIS - ( STANDARD SERVER CHASSIS FOR 8B - 10B VIA OPTIONAL CAGE BAY )

MANUFACTURER: HP
PART NUMBER: HP DL360 G11 2.5 8B

NOTE: THIS MODEL IS A 2.5 INCH SFF 8 BAY SAS / SATA STANDARD OPTION ONLY ( UP TO 10 BAY SAS, SATA, OR NVME COMPATIBLE - CHECK FOR AVAILABILITY ). IF YOU DESIRE A 3.5 INCH LFF ( UP TO 4 BAY SAS / SATA ) OR EDSFF 20 BAY, PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABILITY. OPTION DOES NOT INCLUDE ANY PROCESSORS, MEMORY, STORAGE OR POWER SUPPLIES - PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR CUSTOMIZE CONFIGURATIONS

PROCESSOR SUPPORT

MAX NUMBER PROCESSOR CONFIGURATION: UP TO ( 2 ) TWO CPUs
PROCESSOR SOCKET TYPE: FCLGA4677
PROCESSOR COMPATIBILITY: 4TH GEN INTEL XEON SCALABLE PROCESSOR FAMILY
PROCESSOR CORE COUNT: UP TO 56 CORES PER SOCKET
PROCESSOR TDP: UP TO 350W

NOTE:
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS

MEMORY SUPPORT

MEMORY SUPPORTED: UP TO ( 32 ) THIRTY TWO DIMM SLOTS ( 16 DIMMs PER PROCESSOR )
RDIMM MEMORY SIZE CAPACITY: UP TO 8TB
MEMORY SPEEDS: DDR5-4800MHZ ( SPEEDS MAY VARY BASED ON PROCESSOR MODEL AND/OR RAM TYPE )
NUMBER OF CHANNELS: 8 CHANNELS PER PROCESSOR ( 2 DIMMS PER CHANNEL )

NOTE:
- MEMORY CAPACITY AND SPEEDS MAY VARY, BASED ON PROCESSOR MODEL
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS

STORAGE SUPPORT

HARD DRIVE SUPPORT: UP TO ( 10 ) TEN 2.5 INCH SFF HOT PLUG HARD DRIVES ( 8 BAY SAS / SATA IS STANDARD + 2 BAY IS OPTIONAL )
STORAGE TYPE: HDD / SDD
STORAGE PROTOCOL: SAS4 / SATA3 / PCIE GEN4 NVME
MAX STORAGE SIZE: UP TO 24TB HDD OR 76.8TB SSD OR 153.6TB U.3 PCIE NVME
ADDITIONAL STORAGE SUPPORT: ( 2 ) TWO 2.5 INCH SFF BAYS ( VIA OPTIONAL FRONT BAY ) + ( 2 ) TWO M.2 INTERFACES ( VIA OPTIONAL HOT PLUG BOOT DEVICE )

NOTE:
- 8+2 STORAGE CONFIGURATIONS ALSO AVAILABLE
- ( 2 ) TWO 2.5 INCH SFF BAYS VIA FRONT MEDIA BAY IS OPTIONAL
- ( 2 ) TWO M.2 INTERFACES VIA HT PLG BOOT OPT DEV ( SUPPORTS 2 X 480GB )
- NS204I-U CAGE DLC MODULE MUST BE SELECTED FOR M.2 OPTION ( INTERNAL OR EXTERNAL ). SECONDARY SLOT CAGE ( SLOT2 ON PRIMARY RISER ) MUST BE REMOVED WITH EXTERNAL VERSION.
- IF YOU DESIRE A 3.5 INCH LFF OR EDSFF 20 BAY CHASSIS, PLEASE CHECK FOR AVAILABILITY
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS

EXPANSION SLOT SUPPORT

NUMBER OF PCI SLOTS SUPPORT: UP TO ( 3 ) THREE PCI-E SLOTS ( 2 ) TWO MEZZANINE SLOTS
PCI INTERFACE TYPE: PCI-E 5.0 - INTERFACES VARY

- 1X16 FHHL + 1X16 HH ( STANDARD PRIMARY BUTTERFLY RISER )
- 1X16 FHHL ( PRIMARY OPTIONAL ) / 1X16 FHHL ( SECONDARY OPTIONAL )
- 1X16 FHHL + 1X16 HHHL ( PRIMARY OPTIONAL ) / 1X16 HHHL ( SECONDARY OPTIONAL )
- ( 2 ) TWO OCP 3.0 MEZZANINE SLOTS ( PCI-E 5.0 X16 BANDWIDTH )

NOTE:
- SLOT2 CAGE MUST BE REMOVED IF EXTERNAL HOT PLUG NS204I-U IS INSTALLED
- SLOT3 RISER REQUIRES 2ND PROCESSOR CONFIGURATION
- OCP 3.0 SLOT 2 REQUIRES 2ND PROCESSOR CONFIGURATION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS

POWER SUPPORT

NUMBER OF POWER SUPPLIES SUPPORT: UP TO ( 2 ) TWO SLOTS
POWER TYPES IN WATTAGE: 500W / 800W / 1600W

NOTE:
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS

OPERATING SYSTEMS AND VIRTUALIZATION SOFTWARE SUPPORTED

- MICROSOFT WINDOWS SERVER
- VMWARE ESXI
- RED HAT ENTERPRISE LINUX ( RHEL )
- SUSE LINUX ENTERPRISE SERVER ( SLES )
- CANONICAL UBUNTU
- ORACLE LINUX AND ORACLE VM
- CITRIX

PLEASE BE ADVISED:
THE OPTIONS ABOVE ARE BASED ON HPE QUICKSPECS DOCUMENTATION DATED APRIL 2023 - INFORMATION MAY CHANGE
