Product Details:

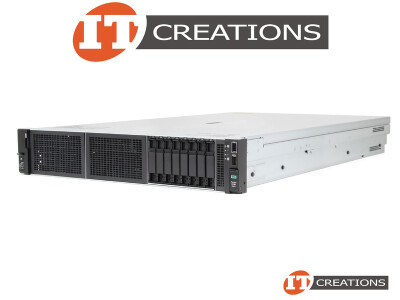

HPE PROLIANT DL380 GEN11 2.5 INCH 8 BAY HPHD HPPS 2U SERVER CHASSIS - ( STANDARD SERVER CHASSIS FOR 8B - 16B / 24B VIA OPTIONAL CAGE BAY )
MANUFACTURER: HP
PART NUMBER: HP DL380 G11 2.5 8B
NOTE: THIS MODEL IS A 2.5 INCH SFF 8 BAY SAS / SATA / NVME U.3 STANDARD OPTION ONLY ( UP TO 24 BAY SAS, SATA, OR NVME COMPATIBLE - 16B / 24B ARE OPTIONAL - CHECK FOR AVAILABILITY ). IF YOU DESIRE A 3.5 INCH LFF OR EDSFF SERVER CHASSIS , PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABILITY. OPTION DOES NOT INCLUDE ANY PROCESSORS, MEMORY, STORAGE OR POWER SUPPLIES - PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR CUSTOMIZE CONFIGURATIONS
PROCESSOR SUPPORT
MAX NUMBER PROCESSOR CONFIGURATION: UP TO ( 2 ) TWO CPUs
PROCESSOR SOCKET TYPE: FCLGA4677
PROCESSOR COMPATIBILITY: 5TH GEN INTEL XEON SCALABLE PROCESSORS ( EMERALD RAPIDS ) / 4TH GEN INTEL XEON SCALABLE PROCESSORS ( SAPPHIRE RAPIDS )
PROCESSOR CORE COUNT: UP TO 64 CORES PER SOCKET
PROCESSOR TDP: UP TO 385W
NOTE:
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
MEMORY SUPPORT
MEMORY SUPPORTED: UP TO ( 32 ) THIRTY TWO DIMM SLOTS ( 16 DIMMs PER PROCESSOR )
RDIMM MEMORY SIZE CAPACITY: UP TO 8TB
MEMORY SPEEDS: DDR5-4800MHZ ( SPEEDS MAY VARY BASED ON PROCESSOR MODEL AND/OR RAM TYPE )
NUMBER OF CHANNELS: 8 CHANNELS PER PROCESSOR ( 2 DIMMS PER CHANNEL )
NOTE:
- MEMORY CAPACITY AND SPEEDS MAY VARY, BASED ON PROCESSOR MODEL
- 32 DIMMs SUPPORTED WITH 8SFF AND 16SFF. 16 DIMMs MAX SUPPORTED WITH 24SFF
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
STORAGE SUPPORT
HARD DRIVE SUPPORT: UP TO ( 30 ) THIRTY 2.5 INCH SFF HOT PLUG HARD DRIVES ( 8 BAY SAS / SATA IS STANDARD + 16B / 24B IS OPTIONAL + 6 REAR BAY IS OPTIONAL )
STORAGE TYPE: HDD / SDD
STORAGE PROTOCOL: SAS4 / SATA3 / PCIE GEN4 NVME
MAX STORAGE SIZE: UP TO 72TB HDD OR 460.5TB SSD OR 6128.6TB U.3 PCIE NVME
ADDITIONAL STORAGE SUPPORT: ( 6 ) SIX 2.5 INCH SFF BAYS ( 2+2+2 VIA OPTIONAL RISER BAYS ) + ( 2 ) TWO M.2 INTERFACES ( VIA OPTIONAL HOT PLUG BOOT DEVICE )
NOTE:
- 8+8+8 STORAGE CONFIGURATIONS ALSO AVAILABLE ( 8 BAY IS STANDARD - 16B / 24B ARE OPTIONAL ). PLEASE CHECK FOR AVAILABILITY
- ( 8 ) EIGHT 2.5 INCH SFF BAYS VIA FRONT MEDIA BAY IS OPTIONAL ( 8 BAY IS STANDARD - 16B / 24B ARE OPTIONAL )
- ( 6 ) SIX 2.5 INCH SFF BAYS VIA REAR RISER BAY IS OPTIONAL ( 2+2+2 )
- REAR BAY STORAGE INSTALLATION WILL AFFECT EXPANSION SLOTS CAPABILITIES
- ( 2 ) TWO M.2 INTERFACES VIA HT PLG BOOT OPT DEV ( SUPPORTS 2 X 480GB )
- NS204I-U CAGE DLC MODULE MUST BE SELECTED FOR M.2 OPTION ( EXTERNAL )
- OPTIONAL BAYS MUST BE INSTALLED TO REACH MAXIMUM CAPACITY STORAGE
- IF YOU DESIRE A 3.5 INCH LFF OR EDSFF 20 BAY CHASSIS, PLEASE CHECK FOR AVAILABILITY
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
EXPANSION SLOT SUPPORT
NUMBER OF PCI SLOTS SUPPORT: UP TO ( 8 ) EIGHT PCI-E SLOTS ( 2 ) TWO MEZZANINE SLOTS
PCI INTERFACE TYPE: PCI-E 5.0 - INTERFACES VARY
- 1X8 FHFL + 1X16 FHFL + 1X8 FHHL ( 3X16 CONNECTORS ) ( STANDARD PRIMARY RISER1 )
- 2X16 FHFL + 1X16 FHHL ( 3X16 CONNECTORS ) ( PRIMARY RISER2 )
- 1X8 FHFL + 1X16 FHHL + 1X8 FHHL ( 3X16 CONNECTORS ) ( SECONDARY RISER1 )
- 2X16 FHFL + 1X16 FHHL ( 3X16 CONNECTORS ) ( SECONDARY RISER2 )
- 2X16 FHFL ( 2X16 CONNECTORS ) ( TERTIARY RISER1 )
- 1X16 FHFL + 1X8 FHFL ( 2X16 CONNECTORS ) ( TERTIARY RISER1 WITH FIO X8 ENABLEMENT KIT )
- ( 2 ) TWO OCP 3.0 MEZZANINE SLOTS ( PCI-E 5.0 X16 BANDWIDTH )
NOTE:
- SECONDARY AND TERTIARY REQUIRE 2ND PROCESSOR CONFIGURATION
- OCP 3.0 SLOT 2 REQUIRES 2ND PROCESSOR CONFIGURATION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
POWER SUPPORT
NUMBER OF POWER SUPPLIES SUPPORT: UP TO ( 2 ) TWO SLOTS
POWER TYPES IN WATTAGE: 800W / 1000W / 1600W
NOTE:
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
OPERATING SYSTEMS AND VIRTUALIZATION SOFTWARE SUPPORTED
- MICROSOFT WINDOWS SERVER
- VMWARE ESXI
- RED HAT ENTERPRISE LINUX ( RHEL )
- SUSE LINUX ENTERPRISE SERVER ( SLES )
- CANONICAL UBUNTU
- ORACLE LINUX AND ORACLE VM
- CITRIX
PLEASE BE ADVISED:
THE OPTIONS ABOVE ARE BASED ON HPE QUICKSPECS DOCUMENTATION DATED JUNE 2023 - INFORMATION MAY CHANGE
