Product Details:

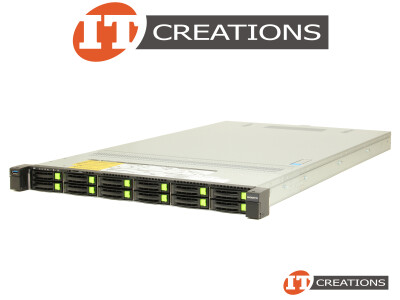

GIGABYTE R184-S92-AAV1 RACK 2.5 INCH SFF 12 BAY PCIE NVME U.2 HSHD HSPS PRE CONFIGURATION 1U SERVER CHASSIS ( R184-S92 ) ( NETWORKING, HYBRID / PRIVATE CLOUD SERV. ) - ( 3 ) THREE PCIE GEN5 X4 NVME M.2 INTERFACES + SMALL FORM FACTOR SFF 12B / 12SFF HOT SWAP HARD DRIVE ( ALSO SUPPORTS SATA / SAS4 - SAS REQUIRES AIC ) HOT SWAP POWER SUPPLY
MANUFACTURER: GIGABYTE
PART NUMBER: R184-S92-AAV1-NEW
CONFIGURATION INCLUDES: ( 1 ) ONE 1U CHASSIS ( 2 ) TWO HEATSINKS ( 2 ) TWO 1600W HOT SWAP POWER SUPPLIES ( 1 ) ONE RACK MOUNT RAIL KIT ASSEMBLY
NOTE:
- THIS PRE-CONFIGURATION OPTION DOES NOT INCLUDE ANY PROCESSORS, MEMORY OR STORAGE
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE IF YOU DESIRE AN UPGRADED CONFIGURATION
PROCESSOR SUPPORT
PROCESSOR SOCKET TYPE: LGA4710 SOCKETS
MAX NUMBER PROCESSOR SUPPORTED: UP TO ( 2 ) TWO CPUs
PROCESSOR COMPATIBILITY: INTEL XEON 6 PROCESSORS ( 6TH GEN ) ( SIERRA FOREST 6700 SERIES / GRANITE RAPIDS 6500 SERIES )
PROCESSOR TDP: UP TO 350W
NOTE:
- 2 CPU CONFIGURATIONS IS REQUIRED FOR MAXIMUM STORAGE PERFORMANCE
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
MEMORY SUPPORT
MEMORY SUPPORTED: UP TO ( 32 ) THIRTY TWO DIMM SLOTS
MEMORY GENERATION: DDR5
MEMORY TYPE: RDIMM / MRDIMM
MEMORY SPEEDS: UP TO 6400MHZ ( RDIMM ) / UP TO 8000MHZ ( MRDIMM ) ( SPEEDS DEPENDENT ON PROCESSOR MODEL )
NUMBER OF CHANNELS: 8 CHANNELS ( PER CPU )
NOTE:
- MRDIMMs IS ONLY SUPPORTED WITH INTEL XEON 6 PROCESSORS WITH P-CORES AND IN 1DPC CONFIGURATION
- RDIMMs RUN AT 5200MHZ IN 2DPC CONFIGURATION
- MEMORY CAPACITY AND SPEEDS MAY VARY, BASED ON PROCESSOR MODEL
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
STORAGE SUPPORTS
HARD DRIVE SUPPORT: UP TO ( 12 ) TWELVE 2.5 INCH SFF HOT SWAP HARD DRIVE
ADDITIONAL STORAGE SUPPORT: UP TO ( 2 ) TWO M.2 INTERFACES ( 22110 / 2280 ) ( 1 ) ONE M.2 INTERFACE ( 2280 VIA I/O BOARD CDCR010
STORAGE TYPE: HDD / SSD / M.2
STORAGE PROTOCOL: SAS4 ( 24GB/S ) / SATA3 ( 6GB/S ) / PCIE GEN5 NVME
NOTE:
- 2 CPU CONFIGURATIONS IS REQUIRED FOR MAXIMUM STORAGE PERFORMANCE
- SAS DRIVES SUPPORTED VIA HBA / RAID ADAPTER. NOT INCLUDED WITH THIS CONFIGURATION
- NO DRIVES INCLUDED WITH THIS CONFIGURATION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
EXPANSION SLOT SUPPORT
NUMBER OF PCI SLOTS SUPPORT: UP TO ( 2 ) TWO PCI-E INTERFACES ( 2 ) TWO OCP 3.0 MEZZANINE SLOTS
PCI INTERFACE TYPE: PCI-E 5.0 - INTERFACES MAY VARY
- 2X16 FHHL
- 2X16 OCP 3.0 MEZZ SLOTS
NOTE:
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
NETWORKING
- ( 2 ) TWO 1GBE LAN PORT ( INTEL I350-AM2 )
- ( 1 ) ONE GBE DEDICATED FOR IPMI
POWER SUPPLY
- ( 2 ) TWO 1600W POWER SUPPLIES ( 80 PLUS TITANIUM REDUNDANT )
FORM FACTOR
- 1U RACKMOUNT
- 438 MM X 43.5 MM X 815 MM
PLEASE BE ADVISED:
THE OPTIONS ABOVE ARE BASED ON MITAC COMPUTING TECHNICAL GUIDE DOCUMENTATION DATED FEBRUARY 2025 - INFORMATION MAY CHANGE
