Product Details:

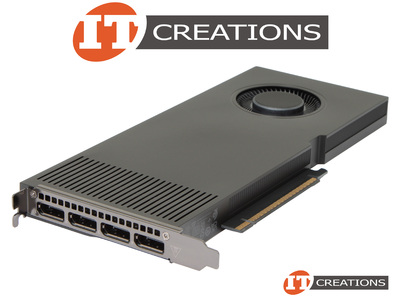

NVIDIA RTX PRO 4000 BLACKWELL GPU 24GB 8960 CUDA CORES MEMORY INTERFACE 192 BIT GDDR7 MEMORY BANDWIDTH 672GB/S PCI-E 5.0 X16 ( 4 ) FOUR DISPLAYPORTS DP GRAPHICS PROCESSING UNIT VIDEO CARD - BLACKWELL ARCHITECTURE ACTIVE COOLING 145W MAX POWER ( 1 ) ONE 16 PIN PWR CONNECTOR ( 12P+4P ) - SINGLE SLOT DIMENSIONS 9.5 INCH ( L ) X 4.4 IN ( H )
MANUFACTURER: NVIDIA
PART NUMBER: 900-5G147-2570-000
CONTENT INCLUDES: ( 1 ) ONE NVIDIA RTX PRO 4000 BLACKWELL GPU - NO CABLES INCLUDED
NOTE:
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
ENGINE SPECS:
ENGINE ARCHITECTURE: BLACKWELL
CUDA CORES: 8960
TENSORE CORES: 5TH GEN
RT CORES: 4TH GEN
AI TOPS: 1178 AI TOPS
SINGLE PRECISION PERFORMANCE: 37 TFLOPS TFLOPS
RT CORE PERFORMANCE: 112 TFLOPS
GPU CLOCK: 1230 MHZ
BOOST CLOCK: 2055 MHZ
PROCESS SIZE: 5NM
TRANSISTORS: 45.6 BILLION
DIE SIZE: 378 MM SQUARE
MEMORY:
MEMORY CONFIGURATION: 24GB
MEMORY INTERFACE: GDDR7
MEMORY INTERFACE WIDTH: 192 BIT
MEMORY BANDWIDTH: 672B/S ( 1,792GB/S )
MEMORY CLOCK: 1750MZH - 28 GB/S EFFECTIVE
SUPPORT:
BUS SUPPORT: PCI-E 5.0
PHYSICAL BUS INTERFACE: PCI-E 5.0 X16
ERROR CORRECTION CODE ( ECC ): YES
SUPPORTED TECHNOLOGIES: NVIDIA BLACKWELL TECHNOLOGY, CUDA CORES TECHNOLOGY, BLACKWELL STREAMING MULTIPROCESSOR ( SM ), 5TH GEN TENSOR CORES ( FP4 PRECISION / DLSS 4 MULTI FRAME GEN ), 4TH GEN RAY TRACING CORES, 9TH GEN NVENC, 6TH GEN NVDEC ( UP TO DOUBLE WITH H.264 DECODE - WITH 4:2:2 H.264 AND HEVC ), GDDR7 MEMORY, NVIDIA RTX PRO, AI MANAGEMENT PROCESSOR, DIRECTX 12, SHADER MODEL 6.6, OPENGL4.6, VULKAN 1.3, CUDA 12.8, OPENCL 3.0, DIRECTCOMPUTE, PCI EXPRESS GEN5
OS SUPPORT: MICROSOFT WINDOWS 11 ( 64 BIT ), MICROSOFT WINDOWS 10 ( 64 BIT ), RED HAT ENTERPRISE LINUX 7.X ( RHEL ), SUSE LINUX ENTERPRISE DESKTOP 15.X, FEDORA 31, UBUNTU 18.04, FREEBSD 11.X, SOLARIS 11
DISPLAY SUPPORT:
MULTI MONITOR: YES, UP TO 4 DISPLAYS
DISPLAY RESOLUTION:
- 7680 X 4320 AT 100HZ ( 2 DISPLAYS )
- 3840 X 2160 AT 165HZ ( 4 DISPLAYS )
CONNECTIONS:
DISPLAY CONNECTORS: ( 4 ) FOUR DISPLAYPORTS DP
POWER CONNECTORS: ( 1 ) ONE 16 PIN POWER CONNECTOR ( PCIE CEM5 12P+4P )
THERMAL AND POWER SPECS:
TOTAL POWER CONSUMPTION ( W ): 140W
SYSTEM REQUIREMENTS:
RECOMMENDED PSU ( W ): 300W
RECOMMENDED MEMORY SIZE: SYSTEM MEMORY GREATER THAN OR EQUAL TO GPU MEMORY; TWICE THE GPU MEMORY RECOMMENDED
NOTE:
- THE RECOMMENDED POWER IS RATED AT A LOWER END CONFIGURATION. MID END TO HIGH END SYSTEM CONFIGURATION WILL REQUIRE A HIGHER WATTAGE PSU
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
COOLING SYSTEM:
- ACTIVE - ( 1 ) ONE ACTIVE FANSINK ( 1 ACTIVE FAN BLOWER )
FORM FACTOR:
- SINGLE SLOT
DIMENSIONS:
- 9.5 INCH ( L ) X 4.4 INCH ( H )
