Product Details:

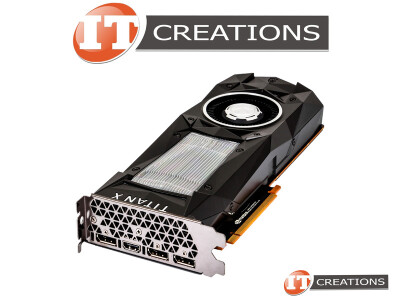

NVIDIA TITAN XP PASCAL GPU 12GB 3840 CUDA CORES MEMORY INTERFACE 384 BIT GDDR5X MEMORY BANDWIDTH 547.7GB/S PCI-E 3.0 X16 ( 3 ) THREE DISPLAYPORTS ( 1 ) ONE HDMI GRAPHICS PROCESSING UNIT VIDEO CARD
MANUFACTURER: NVIDIA
PART NUMBER: 900-1G611-2530-000
ENGINE SPECS:
ENGINE ARCHITECTURE: PASCAL
CUDA CORES: 3840
GPU CLOCK: 1405 MHZ
BOOST CLOCK: 1582 MHZ
PEAK SINGLE PRECISION FP32 PERFORMANCE: 12 TFLOPS
MEMORY:
MEMORY CONFIGURATION: 12GB
MEMORY INTERFACE: GDDR5X
MEMORY INTERFACE WIDTH: 384 BIT
MEMORY BANDWIDTH: 547.7 GB/S
MEMORY CLOCK: 1752 MHZ ( EFFECTIVE: 11408 MHZ - 11.4GB/S )
SUPPORT:
BUS SUPPORT: PCI-E 3.0
PHYSICAL BUS INTERFACE: PCI-E 3.0 X16
SUPPORTED TECHNOLOGIES: SIMULTANEOUS MULTI PROJECTION, VR READY, NVIDIA CUDA, NVIDIA ANSEL, NVIDIA SLI READY ( SLI HB BRIDGE SUPPORTED ), NVIDIA G-SYNC READY, NVIDIA GAMESTREAM READY, NVIDIA GPU BOOST 3.0, VULKAN API, OPENGL 4.5 PCI EXPRESS GEN3( PCI-E 3.0 ), MICROSOFT DIRECTX ( 12 API WITH FEATURE LEVEL 12_1 ), OS CERTIFICATION ( WINDOWS 7-10, LINUX, FREEBSDX86 ), HDCP, NVIDIA GEFORCE EXPERIENCE, MULTI FRAME SAMPLED ANTI ALIASING ( MFAA ), DYNAMIC SUPER RESOLUTION ( DSR ), VOXEL GLOBAL ILLUMINATION ( VXGI ), NVIDIA ADAPTIVE VERTICAL SYNC, DISPLAYPORT 1.2 CERTIFIED, DISPLAYPORT 1.3 / 1.4 READY, HDMI
DISPLAY SUPPORT:
MAXIMUM DIGITAL RESOLUTION: 7680 X 4320 AT 60HZ
HDCP: 2.2
CONNECTIONS:
DISPLAY CONNECTORS: ( 3 ) THREE DISPLAYPORTS ( DP 1.4 ) ( 1 ) ONE HDMI ( 2.0 )
ADDITIONAL CONNECTORS: ( 2 ) TWO SLI INTERFACES ( SLI1 / SLI2 )
THERMAL AND POWER SPECS:
MAX GPU TEMPERATURE ( IN C ): 94
MAX POWER CONSUMPTION ( W ): 250W
RECOMMENDED SYSTEM POWER ( W ): 600W
POWER CONNECTORS: ( 1 ) ONE 8 PIN POWER CONNECTOR ( 1 ) ONE 6 PIN POWER CONNECTOR
COOLING SYSTEM:
( 1 ) ONE ACTIVE FANSINK
