Supermicro SuperBlade 421E-1T3N

Designed for High-Performance Computing, Cloud Computing tasks, and Enterprise Data Centers, the Supermicro SuperBlade 421E-1T3N supports 2x 4th or 5th Generation Intel Xeon Scalable processors. Each socket has 8x DDR5 DIMM slots for a total of 16x slots on the system board, and are compatible with Registered DIMMS (RDIMM), and 3Ds RDIMMs. . The Supermicro 421E-1T3N houses 3x hot-swap U.2 NVMe/SATA drive bays on the front, an NVMe M.2 drive on the motherboard and can house 4x more M.2 drives via PCIe mezzanine card.
Configure

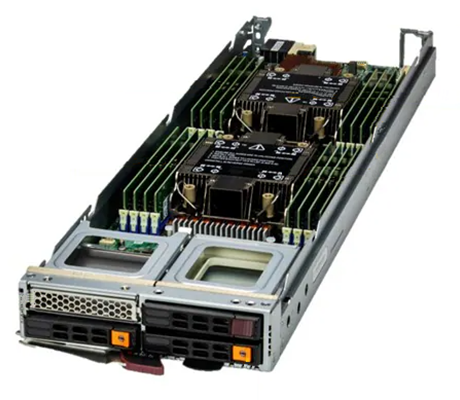

Supermicro 421E-1T3N side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro SuperBlade 421E-1T3N - System Overview

Additional Information

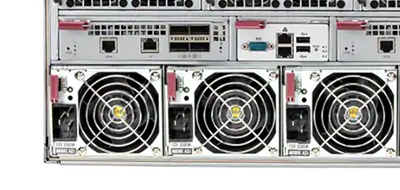

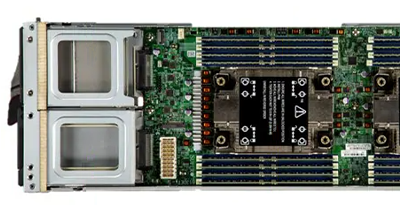

Supermicro 421E-1T3N top detail Supermicro 421E-1T3N detail top

Connecting this system to your IT infrastructure, are 2x 25GbE ethernet ports provided through the enclosure switches, plus an optional OCP 3.0 on the front of the node. An option to add two more 25G Ethernet ports is provided with the installations of another mezzanine card in the server node to connect to an optional enclosure Ethernet Switch. This system is ideal for high-performance computing, cloud computing, and data center applications with 3x hot-swap drive bays available on the front and a single M.2 drive slot on the system board. System management, cooling, and power are all provided by the enclosure. The system also supports optional liquid cooling with a Direct to Chip (DTC) Cold Plate. The Supermicro 421E-1T3N is compatible with many different Supermicro SuperBlade Enclosures.

NOTE: This system is only sold as a complete system and should include at least 1 CPU, 1 DIMM, and 1 HDD/SSD.

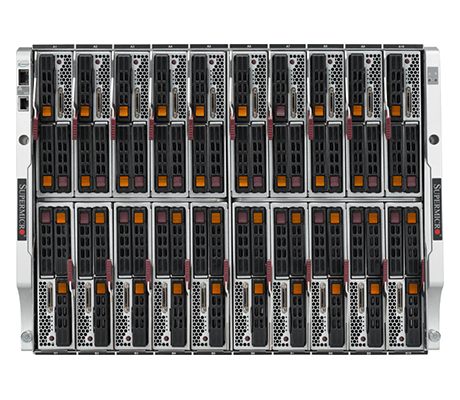

Supermicro 421E-1T3N Enclosure

Compatible SuperBlade Enclosures

Supermicro SuperBlade 421E-1T3N - Specifications

Processor - 2 Sockets

  • 5th Generation Intel Xeon Scalable Processors with up to 64 cores/128 threads
  • 4th Generation Intel Xeon Scalable Processors with up to 60 cores/120 threads
  • Intel Xeon CPU Max Series with High Bandwidth Memoy (HBM)
  • Up to 350W TDP CPUs (Air Cooling)
  • Up to 205W TDP CPUs (Air Cooling at 35°C)

    • Socket:

  • 2 x LGA-4677

Motherboard

  • MBD-B13DET

Memory

    Memory Slots

  • 16 x DDR5 DIMM slots

    • Memory Type

  • RDIMM
  • Intel Optane Persistent Memory (PMem) 300 series

    • Memory Speed

  • Up to 5600MHz

Drive Bays

    Hot-Swap:

  • 2 x Hot-swap U.2 NVMe/SATA3 drive bays
  • 1 x Hot-swap SATA3 drive bay

    • M.2:

  • 1 x M.2 2280 + NVMe SSD
  • Optional: 4 M.2 NVMe via mezz card

On-Board Devices

    Chipset:

  • Intel C741 chipset

    • Network Controllers:

  • Onboard Dual 25G Ethernet
  • 1 x Mezzanine expansion slot and 3 different optional Mezzanine card.
  • 1 x OCP 3.0 network card (option)
  • Optional: Dual 25G Ethernet / 100G EDR / 200G HDR / 400G NDR

    • Management/Security:

  • IPMI 2.0 / KVM over IP / Redfish API/TPM 2.0/Signed Firmware/HW Root of Trust

    • Graphics:

  • Aspeed AST2600

Chassis

    Enclosure:

    Height: 6.5" (165.1mm)

    Width: 1.75" (44.45mm)

    Depth: 23.5" (596.9mm)

Supermicro SuperBlade 421E-1T3N - Documentation

Supermicro SuperBlade 421E-1T3N User's Manual Supermicro SuperBlade 421E-1T3N Specs Sheet
