Tyan Transport HX TN76AB8242 B8242T76AV26HR-2V Server

Description

With its large memory footprint, the Tyan Transport HX TN76AB8242 B8242T76AV26HR-2V Server is also a great candidate for in-memory database and Big Data applications. This is a built-to-order server that can be outfitted to support a number of different applications.

Other TN76AB8242 Chassis Configurations

Tyan Transport HX TN76AB8242 B8242T76AV18E8HR-2V Server
8 x NVMe U.2, 32 x DIMM slots, 2 x 25 GbE ports

Tyan Transport HX TN76AB8242 B8242T76AV2E24HR-2V Server
24 x NVMe U.2, 32 x DIMM slots, 2 x 25 GbE ports

Performance

Choose from either AMD EPYC 7001 or 7002 series processors up to a maximum 200W thermal design point or TDP. 1 + 1 redundant 1000W or 1200W 80+ Platinum PSUs provide the power, while a total of 11x fans just behind the hybrid storage backplane provide cooling. First and second-generation AMD EPYC processors cannot be mixed.

Storage

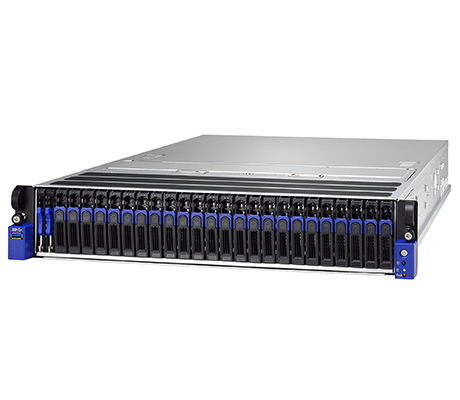

There are 26x 2.5-inch hot-swap drive bays lining the front of the Tyan TN76AB8242 B8242T76AV26HR-2V Server. A hybrid backplane supports both SATA and SAS drive types with the integrated storage controllers on the AMD CPUs providing native SATA support at 6Gb/s. 12Gb/s SAS drives will require a discrete HD/RAID controller utilizing one or more expansion slots.

Memory

With 8x memory channels and 16x memory module slots per CPU, there are a total of 32 active memory module slots in a 2x processor configuration. Only registered (RDIMM) or load-reduced (LRDIMM) DDR4 ECC memory is supported offering speeds of up to 2666MHz to 2400MHz depending on your choice of memory and processor. Maximum memory capacity is listed at up to 4TB using either registered or load reduced memory modules.

Expansion

Along with up to 9x PCIe slots on the pre-installed Tyan riser cards, there is a dedicated gen 3.0 x16 OCP 2.0 card slot. There are also two integrated 25GbE ports and a single integrated platform management port (IPMI).

Management

This system features a IPMI 2.0 compliant baseboard management controller and on board Aspeed AST2500 chipset for system monitoring. The AST2500 also provides remote management of the Tyan Transport TN76AB8242 B8242T76AV26HR-2V Server.

Summary

The Tyan Transport HX TN76AB8242 B8242T76AV26HR-2V Server is a great general-purpose server outfitted with dual AMD EPYC processors, a large memory footprint, and generous storage. It’s suitable for high-performance applications including deep learning, AI, and in memory database applications, and can also be used as a storage server.
