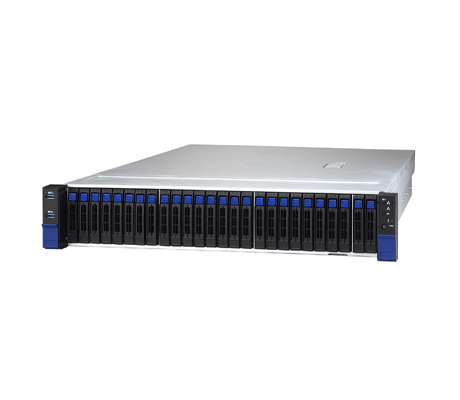

Taking advantage of the powerful performance offered by the single AMD EPYC 7002/7003 processor, the Tyan Transport SX TS65AB8036 B8036T65AV28HR-LE server offers up to 64 cores, 4TB of memory, and 5x PCIe 4.0 lanes. This platform is designed for storage intensive applications, and with a generous up-front storage plus a large memory footprint, this system is great for making large amounts of data easily accessible without the added cost of high-performance I/O and NVMe drives.
Other TS65AB8036 Chassis ConfigurationsWith only a single AMD EPYC 7002/7003 series processor, the Tyan TS65AB8036 B8036T65AV28HR-LE can support up to 64 cores and up to 128 threads. The single processor also supports up to 4TB of memory with a generous contingent of PCIe 4.0 lanes for optional expansion cards.
The CPU supports 8x memory channels with 2x memory module slots per channel for 16x memory slots total. Registered (RDIMM) and load-reduced (LRDIMM) memory modules are supported offering 2TB and 4TB respectively using 3DS memory modules. Depending on your choice of memory modules and CPU, memory can run at up to 3200MT/s.

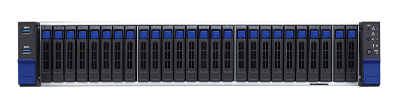

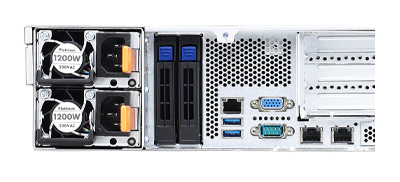

26x SATA storage bays line the front of the Transport SX TS65AB8036 B8036T65AV28HR-LE, plus an additional 2x SATA storage bays in a special drive carrier accessible from the rear of the chassis. 2x NVMe M.2 drives are also supported on the system board, which can be configured for redundancy to support the OS. SAS drives supporting transfer speeds of 12Gb/s can be installed in all front drive bays, but require an optional HBA/RAID controller.
AMD EPYC 7002/7003 processors offer PCIe 4.0 compatibility for twice the bandwidth compared to PCIe 3.0. There are 4x FH/FL PCIe slots plus a single HH/HL slot on the pre-installed TYAN risers.
Using an integrated platform management interface 2.0 (IPMI 2.0) compliant baseboard management controller (BMC), the Aspeed AST2500 management module monitors temperature, voltage, memory, and power. Additional apps, such as Watchdog, megaRAC, and Redfish API, offer a more user-friendly graphic interface that can be accessed using a conventional browser.
Offering support for up to 26x storage bays, the Tyan Transport SX TS65AB8036 B8036T65AV28HR-LE server is a great option for storage intensive applications. The 2U form factor provides 16x DIMM slots with up to 4TB of memory. The server also offers the best performance with the latest PCIe 4.0 compatibility from a single AMD EPYC 7002/7003 series processor.
