The Tyan Thunder HX FT65TB5642 B5642F65TV8E2H-2T-N workstation tower delivers powerful performance with a single 3rd generation Intel Xeon Scalable processor. This professional workstation features ample storage with room for 8x 3.5" storage drives up front, plus an additional two 2.5" bays that support NVMe U.2 drive formats. 2x full-height, full-width GPUs are also supported.
With a chassis that can be configured as a tower workstation or a 4U rack workstation mounted in a 42U enclosure, the Tyan Thunder HX FT65TB5642 B5642F65TV8E2H-2T-N workstation can adapt to your changing business needs. It offers hybrid storage with support for SAS, SATA and NVMe U.2 storage devices, plus M.2. Powering the system is a 2000W 80 PLUS Platinum PSU. This system offers 3x fans with 2x hot-swap fans in the rear of the chassis. It also supports 2x 10GbE and 2x 1GbE LAN ports. 5x PCIe 4.0 PCIe slots in back provide for other options, including 2x high-performance GPUs.
Other FT65TB5642 Chassis Configurations3rd generation Intel Xeon Scalable processors on this system are limited to a maximum configurable Thermal Design Power (cTDP) of 270W. With the updated S5642AGM3NRE-2T motherboard needed to support the larger socket for support of the 3rd Gen Xeon Scalable processor, PCie 4.0 is supported offering twice the throughput of PCIe 3.0. Instead of only 6x memory channels supported by previous generation Xeon Scalable processors, the 3rd generation provides 8x memory channels for increased memory density.
There are 4x memory module slots to either side of the single processor socket, for a total of 8x. With 8x memory channels to work with, each memory module occupies a single memory channel for maximum bandwidth. Registered (RDIMM) and Load-Reduced (LRDIMM) memory modules are supported, but for maximum capacity potential, 3DS RDIMMs and LRDIMM memory modules will provide up to 2TB with all slots loaded with 256GB memory modules.

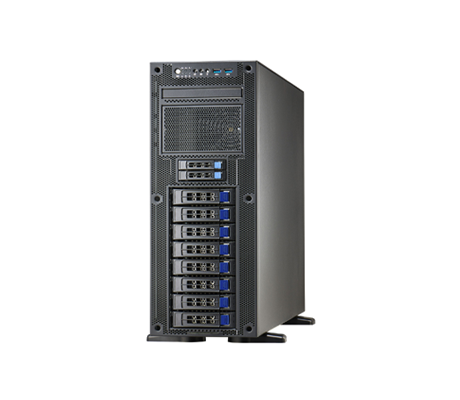

Options for storage on this system include the whole range of SAS, SATA and NVMe U.2 storage formats. The front of the Tyan Thunder HX FT65TB5642 B5642F65TV8E2H-2T-N workstation features 8x 3.5-inch hot-swap drive bays in the lower portion, with 2x smaller 2.5-inch drive bays just above those. The 3.5-inch bays, with dark blue drive release tabs, can be outfitted with either SATA, natively, or SAS using a discrete SAS controller in one of the PCIe slots. The 2.5-inch bays have light blue tabs indicating support for NVMe U.2 drive formats. There is a SlimSAS 8x connector for 2x native NVMe support. All drive trays have a tool-less design making it easy to install or replace drives. 2x PCIe 3.0 x4 slots on the system board can be outfitted with NVMe M.2 drive types. Additional NVMe storage drives can be installed via the PCIe 4.0 expansion slots.
A legacy VGA port on the back of the system provide resolutions up to 1920x1200, but a GPU is recommended in one of the 2x PCIe 4.0 x16 slots directly supported by the CPU. The system can support 2x full-height, full-width (FHFW) GPUs in slots 5 and 6. Slot 2 activated via MUX has a Gen4 PCIe x8 slot while slot 3 provides a x8 PCIe 4.0 link and x16 Slot. The #4 slot is a x8 PCIe 4.0 with a x4 link. One of minor the differences between this system and the FT65TB5642 B5642F65TV8E2H-G workstation tower is the inclusion of a 1x 1GbE port and 2x RJ45 10GbE and on the back of the system instead of 2x 1GbE ports. Both offer a 1GbE management LAN port.
A control panel on the front where the on/off button resides, also supports a number of LED status lights for LAN ports 1-3, plus an IPMI LED, HDD LED, and ID LED if you plan on rack mounting this system. It also features the Aspeed AST 2500 baseboard management controller (BMC) for at-chassis and remote monitoring and troubleshooting of the system.
Outfitted with a single 3rd generation Intel Xeon Scalable processor, the Tyan Thunder HX FT65TB5642 B5642F65TV8E2H-2T-N workstation delivers superb performance and exceptional storage. Get faster results with support for PCIe 4.0, which enhances I/O, Storage and GPU response times and throughput. These next-generation CPUs enable this system to support up to 2TB of memory at capacity.
