Supermicro SuperBlade 420P-1T3N - System Overview

Description

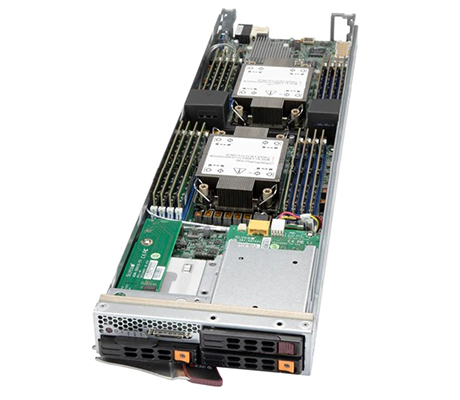

The Supermicro SuperBlade 420P-1T3N is designed for Data Centers and High-Performance Computing (HPC) applications. This SuperBlade is used in Supermicro’s family of 8U SuperBlade Enclosures. These enclosures offer high-density performance and can be outfitted with up to 20x of these half-height blades. Each blade is a dual socket system compatible with 3rd Generation Intel Xeon Scalable Processors. it offers 2x 2.5-inch hot-pluggable NVMe/SATA3 drive bays and a single 2.5-inch SATA drive bay. An optional mezzanine add on card (AOC) supports a single M.2 NVMe drive.

Performance

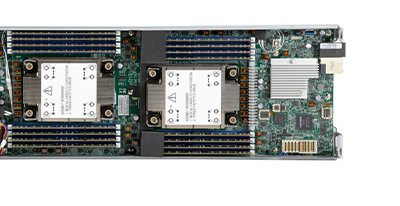

Supermicro SuperBlade 420P-1T3N detail view

The dual CPU sockets support Intel’s new 3rd Generation Xeon Scalable Processors. The maximum number of cores supported by the Supermicro 420P-1T3N’s maximum Thermal Design Point (TDP) is 38x physical cores and 76x virtual threads. The thermal solutions on this system allow for a maximum TDP of 270W while using a CPU liquid cooling kit.

Storage

The front of the system holds 3x 2.5-inch drive bays. Two of the drive bays support either NVMe or SATA3 drives while the third drive bay only supports SATA3 drives. A single NVMe M.2 drive slot is also available on the system board.

Memory

Each CPU socket on this blade server supports 8x DIMM slots for a total of 16x DIMM slots if both sockets are utilized. Up to 4TB of 3DS ECC DDR4 3200 MHz Registered or Load Reduced DIMMs can be installed on the SuperBlade 420P-1T3N. Intel Optane persistent memory is also supported on this system. Memory speeds of 2933, 2666, 2400 MHz, plus 3200 MHz modules are can be used to populate this system.

Expansion

To extend the capabilities of this system, a single mezzanine expansion slot can support one of three mezzanine cards. Options for these cards include an OmniPath 100Gbps card, and M.2 support card, and InfiniBand 100G EDR / 200G EDR card. The system also offers onboard dual 25G Ethernet.

Management

Supermicro SuperBlade 420P-1T3N blade enclosure management view

System management is handled through the Intelligent Platform Management Interface (IPMI) 2.0 software. The IPMI is able to provide remote access to your system through the Baseboard Management Controller (BMC). The enclosures that support this system are able to provide management options through the Chassis Management Module or CMM.

Summary

The Supermicro SuperBlade 420P-1T3N is designed for Supermicro’s family of 8U SuperBlade enclosures. This system is designed for Data Center and High-Performance Computing applications. Dual CPU sockets on this system are compatible with 3rd Generation Intel Xeon Scalable Processors offering PCIe 4.0 capabilities and 1.6x the performance compared to the previous generation. Up to 4TB of memory can be installed along with 3x 3.5-inch hot-pluggable SATA3 drives or a combination of 2x NVMe drivs with a single SATA3 drive.

Request A Quote

Supermicro SuperBlade 420P-1T3N - Specifications

Processor - 2 sockets
  • 3rd Generation Intel Xeon Scalable Processors
Memory
    Memory Capacity

  • 16 DIMM slots
  • Up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
  • Supports Intel Optane Persistent Memory
  • Memory Type

  • 3200/2933/2666/2400MHz ECC DDR4 RDIMM/LRDIMM
Drive Bays
    Hot-Swap:

  • 2 x Hot-Plug 2.5" NVMe/SATA3 drive bay
  • 1 x Hot-Plug 2.5" SATA3 drive bay
  • M.2:

  • 1 x NVMe M.2
I/O Ports

    TPM:

  • 1 x TPM Header
  • KVM:

  • 1 x Front Connector for SMCI KVM Card
System Cooling
    Heat sink:

    Passive CPU heatsink:

  • CPU1: SNK-P1044V
  • CPU2: SNK-P0077V
Front Panel
    Buttons

  • Power On/Off button
  • UID button
  • LEDs

  • Power LED
  • UID / KVM LED
  • Network Activity LEDs
  • Fault LED
  • Connector

  • SUV (Serial/USB/Video) & KVM Connector
Chassis

    Dimensions (D x W x H)

  • 23.5" x 1.75" x 6.5" (596.9mm x 44.45mm x 165.1mm)
Management
    Software

  • Intelligent Platform Management Interface (2.0)
  • IPMIview
  • IPMItool
