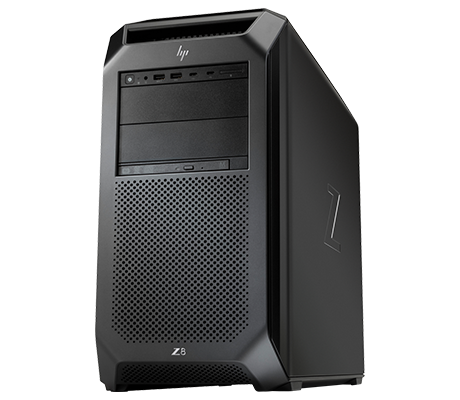

The HP Z8 G4 workstation is not only the industry’s first to support dual processors from Intel’s first- and second-generation Xeon Scalable family of processors, but also the first workstation with self-healing BIOS. It features an impressive 3TB max memory footprint and support for up to 48TB of storage. A range of GPUs from both NVIDIA and AMD are supported on this system, including NVIDIA’s Ada Generation GPUs. This workstation can easily handle the most complex applications with ease.
The HP Z8 G4 is one of the first dual-processor workstations to take advantage of Intel’s new Xeon Scalable processors. Since its release, the system is now capable of supporting both first- and second-generation Intel Xeon Scalable processors providing up to 56 physical cores. To keep the high-performance processors cool without adding to the system’s acoustics, HP designed a new split-chassis with four high-efficiency fans. It also boasts significantly more memory and storage than the previous generation and is sure to not disappoint when it comes to performance, security, and expansion potential.
The Z8 G4 is powered by Intel’s first and second-generation Xeon Scalable family of processors, and has the ability to support a maximum of two processors with up to 28 cores each. With two processors supporting up to 56 cores it can easily handle the most complex applications including simulations, machine learning, and real time 8K video editing. Intel Xeon Scalable processors are available in four different options: Platinum, Gold, Silver, and Bronze. For creatives that demand the highest performance, Xeon Platinum 8280 processors provide up to 38.5MB cache, have a base clock speed of 2.7 GHz that can boost up to 4.0GHz and can support up to 1TB of memory each. Other processors with an “M” support more memory at up to 1.5TB each. In addition to the increased memory bandwidth, Xeon Scalable processors provide expanded I/O support for up to 48 lanes of PCIe 3.0. HP’s state-of-the-art chassis design keeps the high-performance components cool. Each processor is also equipped with its own heat sink featuring a high-pressure fan regulated by the system’s BIOS. The system’s split chassis and innovative ducting ensures that the second processor does not recycle warm air from the first one for a more efficient, and quieter cooling process.
Memory capacity is impressive. With 24 memory slots available, the system can support up to 3TB of high-speed DDR4 ECC memory in a dual-processor configuration. Reaching the max memory capacity requires 24 DDR4 128GB memory modules, Win 10 or 11 Pro 64 for workstations, and two “M”-designated processors. When outfitted with compatible processors, memory speeds of up to 2933MHz are available, an improvement from HP’s Z840 where memory speeds capped-out at 2400MHz. Xeon Scalable processors support six memory channels with two memory slots each, another advancement over previous generation processors which only supported four memory channels. With an upgrade to the 2nd generation Intel Xeon Scalable processors, this system can also be outfitted with intel Optane Data Centric Persistent Memory Modules (DCPMM) but memory speed will be limited to 2666MHz. Total memory capacity supported for DCPMM plus DRAM is less than or equal to 1TB with a single processor or up to 2TB with dual processors installed. Some other memory limitations exist when using some AMD graphics solutions.
Storage options are flexible and the system will support a maximum of 42TB (per currently available HP documentation) using a combination of the four internal drive bays, placing up to four drives in the 5.25-inch optical drive bays, dual M.2 modules loaded into the PCIe slots above CPUs 0 and 1, and incorporating one of HP’s Z Turbo Quad drive carriers that support up to four M.2 storage devices. The four drive bays inside the system support either one 2.5” drive or one 3.5” drive. For added storage capacity, a drive tray adapter will allow the front two 5.25” media bays to support either one large form factor drive or two small form factor drives each. Deemed “the world’s most secure workstation”, the Z8 includes the first self-healing BIOS with intrusion detection and features a comprehensive suite of embedded security features. HP’s SureStart ensures the workstation will only boot Genuine HP BIOS and will recover the System BIOS if tampering is identified. For those that need it, this system can include an optional SD card reader and a Blu-ray ODD or slim DVD in the front of the system.
Expansion potential is great with up to nine PCIe 3.0 slots with two processors—four PCIe 3.0 x16 slots for graphic cards or SSDs, three PCIe 3.0 x8 slots for SSDs, and two PCIe 3.0 x4 slots. A single processor will only support six of PCIe slots and a second processor is required to use all nine slots. Adding the second processor also transforms PCIe slot #1 from an x4 slot to an x8 electrical slot. This system has an abundance of USB ports front and back with the premium model sporting two USB 3.1 Gen1 slots and two USB 3.1 Gen2 Type-C slots at the front of workstation, one of which has charging capability. The back displays six USB 3.0 Gen1 slots, with another inside the system, plus three internal USB 2.0 ports for a total of 14 USB slots. The system can support up to 4x single-wide GPUs like the NVIDIA QUADRO P1000 4GB or AMDs Radeon Pro WX 3200 4GB or a maximum of 2x of the NVIDIA RTX A6000 Ada Generation graphics cards. This system does not support graphics without a discrete graphics card installed.
*For more information regarding the Personality Modules, PCIe slots 8 and 9, please review the “Technical White Paper” in the Documentation section at the bottom of this landing page. Also, refer to the “QuickSpecs HP Z Turbo Quad Pro and Dual Pro” document below for specific HP PCIe Z Turbo Duo cards supported.
System management is hassle-free with intuitive lights on the front of the chassis and HP’s PC Hardware Diagnostics UEFI. Intel’s Active Management Technology offers cutting-edge features for remote system management via LANDesk Management Suite, Microsoft System Center Configuration Manager, or HP’s Client Automation Enterprise. Of course HP didn’t shy on security features on the world’s most powerful workstation with a side-panel lock for internal hard drive safety and a loop available to add a padlock. If security is a priority, system admins can opt to add an intrusion sensor and a Kensington lock.
The HP Z8 G4 is one of HP’s super-performing tower workstations featuring support for dual 1st or 2nd generation Intel Xeon Scalable processors. At full capacity with all 24 memory slots outfitted with 128GB memory modules it can support up to 3TB. Another notable feature on this powerhouse, is support for up to 48TB of storage to easily handle data-hungry applications. Designed with a new split-chassis, the Z8 uses four fewer fans than its predecessor allowing this high-performance system to operate almost silently. Furthermore, system admins can have peace of mind with their mission critical data with the Z8’s first self-healing BIOS with intrusion detection.
Slot 2:
Slot 3:
Slot 4:
Slot 5:
Slot 6:
Slot 7:
Memory Type Supported:
Memory Speed Supported:
Premium:
Internal Slot 2 CPU2:
Optional:
Maximum:
If you know what you want but can't find the exact configuration you're looking for, have one of our knowledgeable sales staff contact you. Give us a list of the components you would like to incorporate into the system, and the quantities, if more than one. We will get back to you immediately with an official quote.
