Gigabyte G481-H81 GPU Server

Description

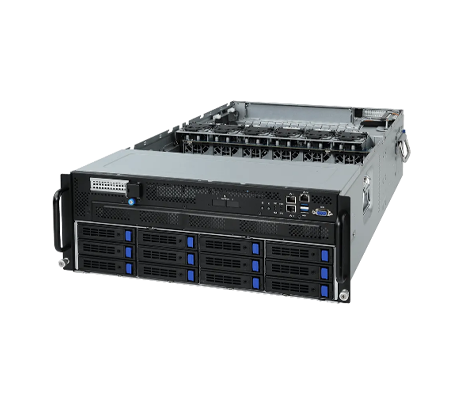

10GbE ports on the back of the system ensure you can get that compute accelerated data to the right place fast. Outfitted with up to 8x high-performance GPUs, the Gigabyte G481-H81 GPU server features 1st or 2nd generation Intel Xeon Scalable processors and up to 3TB of memory, this system can power through enterprise database, cloud and storage, plus high-performance workloads. It features 12x bays up front plus support for data centric persistent memory modules that can either be used to extend memory or storage depending on BIOS settings. Powering the system are three 1600W redundant 80PLUS Platinum PSUs.

Other Gigabyte G481 Series GPU Servers

Gigabyte G481-HA0 GPU Server
2x Intel Xeon Scalable 1st & 2nd Gen, 10x PCIe 3.0 GPUs, 2x HLLP PCIe Gen3 x16, 3TB mem., 12x 3.5" SATA/SAS, 10x 2.5" SATA/SAS/NVMe

Gigabyte G481-HA1 GPU Server
2x Intel Xeon Scalable 1st & 2nd Gen, 10x PCIe 3.0 GPUs, 2x HLLP PCIe Gen3 x16, 3TB mem., 12x 3.5" SATA/SAS, 10x 2.5" SATA/SAS/NVMe

Gigabyte G481-H80 GPU Server
2x Intel Xeon Scalable 1st & 2nd Gen, 8x PCIe 3.0 GPUs, 2x HLLP PCIe Gen3 x16, 3TB mem., 10x 2.5" SATA/SAS/NVMe

Gigabyte G481-H81 GPU Server
2x Intel Xeon Scalable 1st & 2nd Gen, 8x PCIe 3.0 GPUs, 2x HLLP PCIe Gen3 x16, 3TB mem., 12 x 3.5" / 2.5" SATA/SAS

Gigabyte G481-S80 GPU Server
2x Intel Xeon Scalable 1st & 2nd Gen, 8 x SXM2 sockets Gen3 x16, 4x HLLP PCIe Gen3 x16, 1x OCP, 3TB mem., 10x 2.5" SATA/SAS/NVMe

Performance

1st or 2nd generation Intel Xeon Scalable processors are supported offering up to 28 physical cores and 56 virtual threads. With both processors installed the system will support a maximum of 56 cores. Only PCIe 3.0 speeds are supported using these processors. Certain 1st generation CPUs also support Intel Omni-path host fabric interface for improved I/O performance.

Memory

Each processor supports 6x memory channels with 12x memory module slots for up to 24x active memory module slots in a dual processor configuration. Memory speed will be dependent on CPU, memory modules, and memory configuration with memory speed determined by the slowest performer. Registered (RDIMM) or load-reduced (LRDIMM) memory modules are supported, but LRDIMMs will provide the highest capacity using 128GB modules in all slots for up to 3TB of memory. RDIMMs will provide half that at 1.5TB. Only second-generation CPUs are compatible with data centric persistent memory modules (DCPMM) and only RDIMM memory modules can be used in conjunction with DCPMMs.

Storage

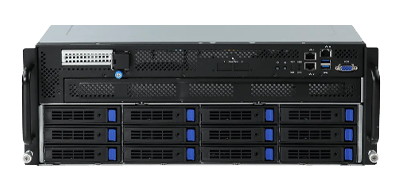

12x 3.5-inch storage bays that can also be used to support 2.5-inch storage devices line the front of the system. 8x storage devices are supported by default through the system board, however, the other 4x storage bays will require a SAS controller for activation. SAS and SATA drives are supported with SAS offering the greatest throughput at up to 12Gb/s compared to SATA at 6Gb/s. SAS storage devices will require a discrete SAS drive controller.

Expansion

Support for up to 8x Nvidia GPU accelerators is provided by 8x PCIe 3.0 x16 expansion slots at the back of the chassis. Another low-profile PCIe 3.0 x16 slot at the back of the chassis can be used to support optional high-performance I/O with up to 4x QSFP28 LAN ports offering 25Gb/s bandwidth per port. One slos at the front has a PCIe 3.0 x8 low profile slot and can be used for the SAS HD/RAID controller. The system comes with 2x 1Gb/s BASE-T LAN ports on the front and 2x in back with another 1Gb/s management LAN port. CPUs featuring Omni-path architecture will provide even more high-speed I/O ports. Only a uniform population of GPUS are supported, no mixing.

Management

Base Management Controller (BMC) is provided through the AMI MegaRAC SP-X solution providing a graphical browser-based user interface. Gigabyte also offers two proprietary management applications that are free of charge. The Gigabyte Management Console provides management for a single system, while the Gigabyte Server Management (GSM) provides management for multiple Gigabyte servers. Both feature a graphical user interface and provide information on health status, plus remote out-of-band boot and the ability to create alerts.

Summary

With support for up to 8x double-slot GPU accelerators and dual Intel Xeon Scalable processors, the Gigabyte G481-H81 GPU server is a great choice for high-performance computing applications in the data center, cloud or as an addition to an enterprise business. Supporting generous storage up front with 12x 3.5-inch storage bays and up to 3TB of memory, this system is also a good fit for data base applications.
