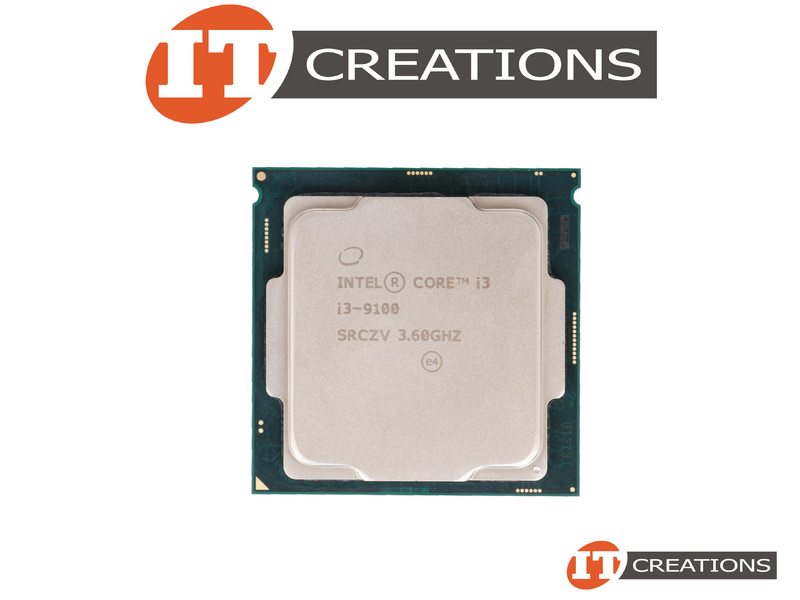

INTEL CORE I3 QUAD CORE PROCESSOR I3-9100 3.60GHZ 6MB SMART CACHE 8GT/S BUS SPEED TDP 65W FCLGA1151 ( COFFEE LAKE ) (I3-9100)

Product Details:

INTEL CORE I3 QUAD CORE PROCESSOR I3-9100 3.60GHZ 6MB SMART CACHE 8GT/S BUS SPEED TDP 65W FCLGA1151 ( COFFEE LAKE )

MANUFACTURER: INTEL
PART NUMBER: I3-9100
CPU SERIES: 9TH GEN INTEL CORE I3 PROCESSORS FAMILY
PROCESSOR CODE NAME: COFFEE LAKE
SOCKETS SUPPORTED: FCLGA1151 ( SOCKET H4 )
MAX CPU CONFIGURATION: 1
COOLING DEVICE: NOT INCLUDED - PROCESSOR ONLY

PERFORMANCE

CPU FREQUENCY: 3.60GHZ
CPU MAX TURBO FREQUENCY: 4.20GHZ
INTEL TURBO BOOST TECHNOLOGY 2.0 FREQUENCY: 4.20GHZ
MULTI-CORE: QUAD-CORE
THREADS: 4
CACHE: 6MB INTEL SMART
BUS SPEED: 8 GT/S
LITHOGRAPHY: 14 NM
THERMAL DESIGN POWER ( TDP ): 65W

SUPPLEMENTAL INFORMATION

EMBEDDED OPTIONS AVAILABLE: NO

MEMORY SPECS

MAX MEMORY SIZE ( DEPENDENT ON MEMORY TYPE ): 64GB
MEMORY TYPES: DDR4-2400
MAX MEMORY SPEEDS: 2400 MHZ
MAX NUM. MEMORY CHANNELS: 2
MAX MEMORY BANDWIDTH: 37.5GB/S
ECC MEMORY SUPPORTED: YES

PROCESSOR GRAPHICS

PROCESSOR GRAPHICS: INTEL UHD GRAPHICS 630
GRAPHICS BASE FREQUENCY: 350 MHZ
GRAPHICS MAX DYNAMIC FREQUENCY: 1.10 GHZ
GRAPHICS VIDEO MAX MEMORY: 64GB
4K SUPPORT: YES, AT 60HZ
MAX RESOLUTION ( HDMI ): 4096 X 2304 AT 24HZ
MAX RESOLUTION ( DP ): 4096 X 2304 AT 60HZ
MAX RESOLUTION ( EDP - INTEGRATED FLAT PANEL ): 4096 X 2304 AT 60HZ
DIRECTX SUPPORT: 12
OPENGL SUPPORT: 4.5
INTEL QUICK SYNC VIDEO: YES
INTEL INTRU 3D TECHNOLOGY: YES
INTEL CLEAR VIDEO HD TECHNOLOGY: YES
INTEL CLEAR VIDEO TECHNOLOGY: YES
NUMBER OF DISPLAYS SUPPORTED: 3
DEVICE ID: 0X3E91

EXPANSION OPTIONS

SCALABILITY: 1S
PCI EXPRESSION REVISION: 3.0
PCI EXPRESSION CONFIGURATIONS: UP TO 1X16, 2X8, 1X8 + 2X4
MAX NUM. OF PCI LANES: 16

ADVANCED TECHNOLOGIES

INTEL OPTANE MEMORY SUPPORTED: YES
INTEL TURBO BOOST TECHNOLOGY: 2.0
INTEL VPRO PLATFORM ELIGIBILITY: NO
INTEL HYPER THREADING TECHNOLOGY: NO
INTEL VIRTUALIZATION TECHNOLOGY ( VT-X ): YES
INTEL VIRTUALIZATION TECHNOLOGY FOR DIRECT I/O ( VT-D ): YES
INTEL VT-X WITH EXTENDED PAGE TABLES ( EPT ): YES
INTEL TRANSACTIONAL SYNCHRONIZATION EXTENSIONS: NO
INTEL 64: YES
INSTRUCTION SET: 64 BIT
INSTRUCTION SET EXTENSIONS: INTEL SSE4.1, INTEL SSE4.2, INTEL AVX2
IDLE STATES: YES
ENHANCED INTEL SPEEDSTEP TECHNOLOGY: YES
THERMAL MONITORING TECHNOLOGIES: YES
INTEL IDENTITY PROTECTION TECHNOLOGY: YES
INTEL STABLE IMAGE PLATFORM PROGRAM ( SIPP ): NO

SECURITY & RELIABILITY

INTEL ADVANCED ENCRYPTION STANDARD AES NEW INSTRUCTIONS: YES
SECURE KEY: YES
INTEL SOFTWARE GUARD EXTENSIONS ( INTEL SGX ): YES WITH INTEL ME
INTEL MEMORY PROTECTION EXTENSIONS ( INTEL MPX ): YES
INTEL OS GUARD: YES
INTEL TRUSTED EXECUTION TECHNOLOGY: NO
EXECUTE DISABLE BIT: YES
INTEL BOOT GUARD: YES
