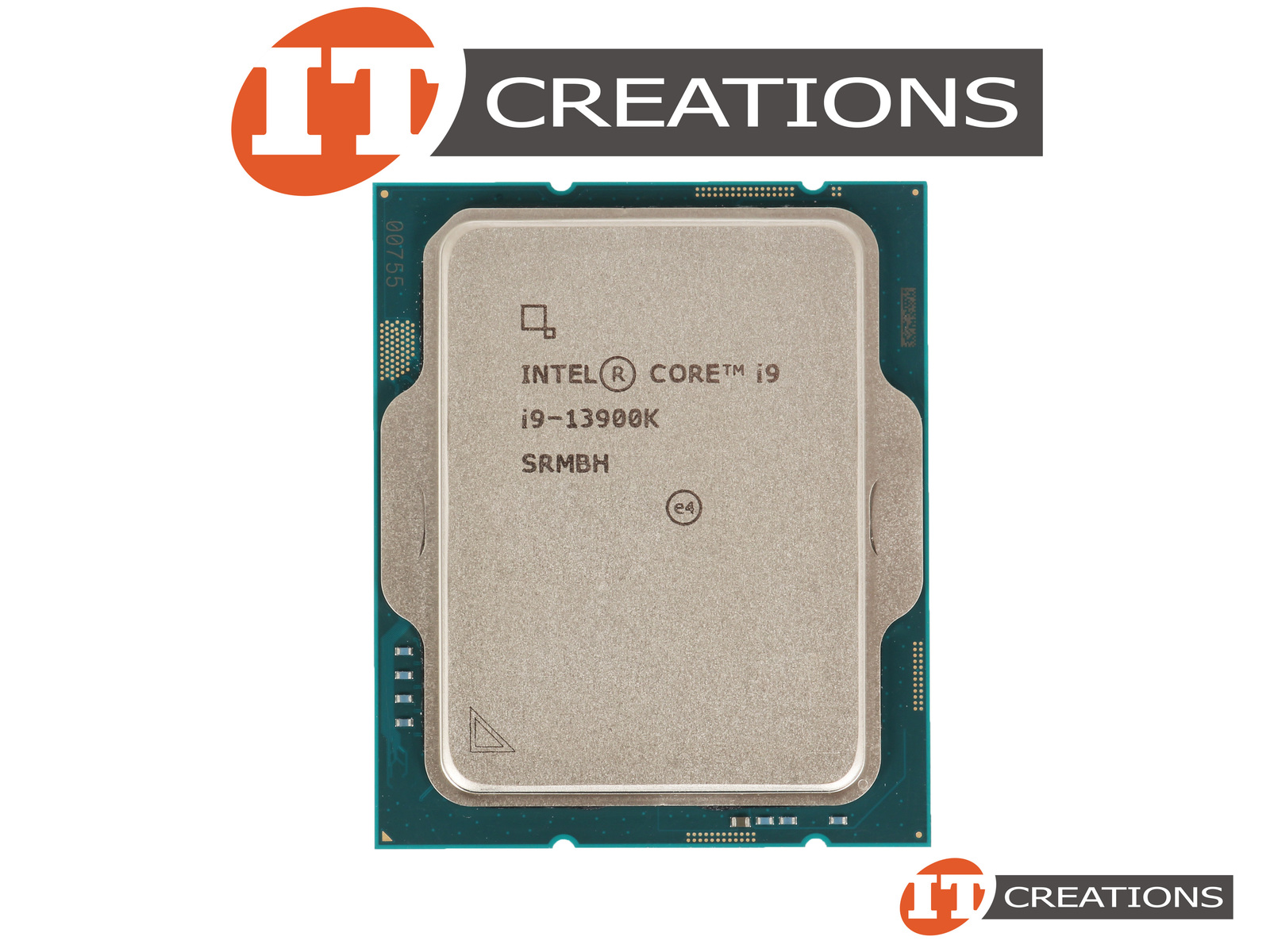

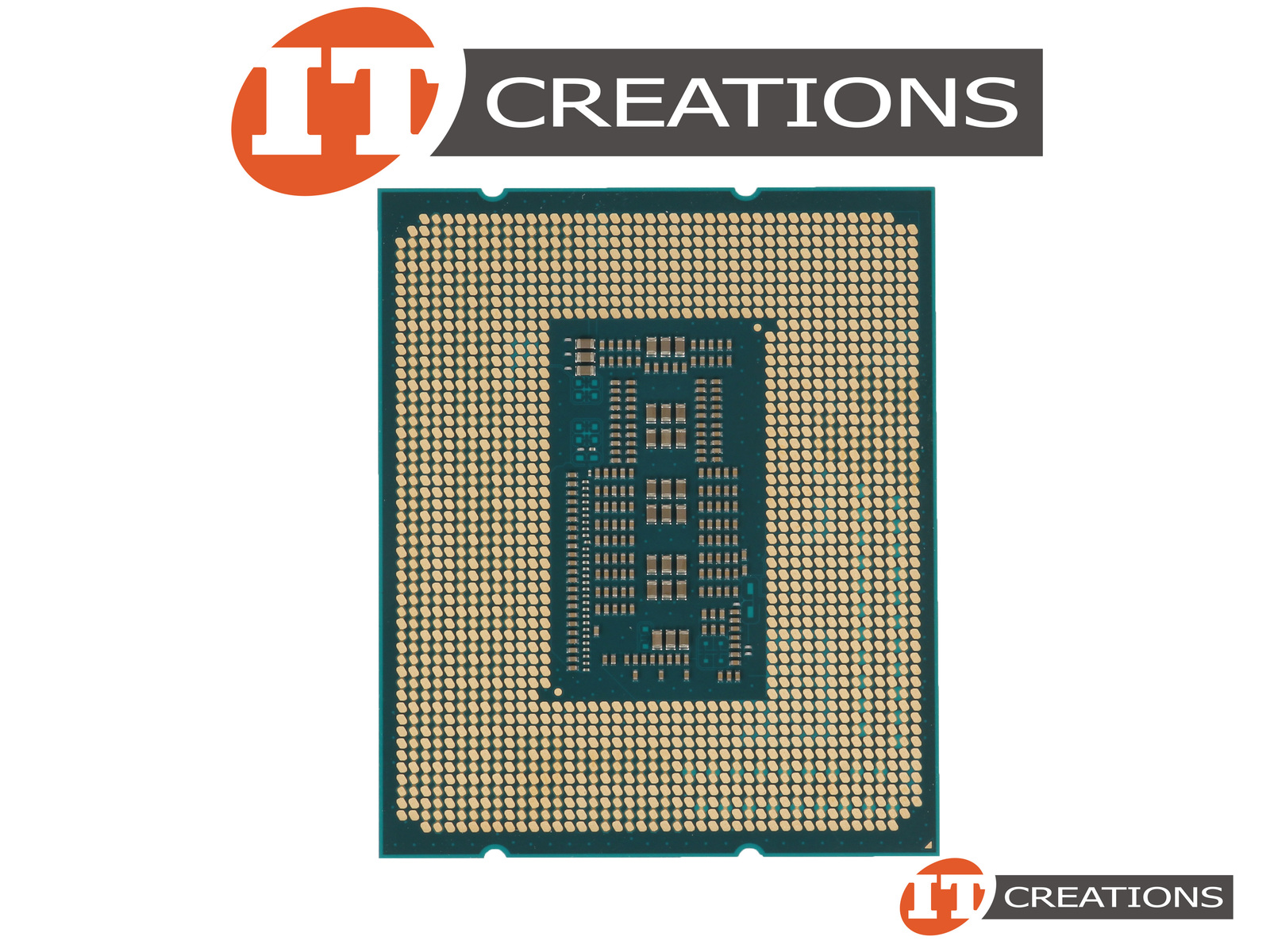

INTEL CORE I9 8C/16C 24 CORE PROCESSOR I9-13900K 2.20GHZ BASE / 5.80GHZ MAX 36MB SMART CACHE TDP 125W / 253W FCLGA1700 ( RAPTOR LAKE ) (CM8071505094011)

Product Details:

INTEL CORE I9 8C/16C 24 CORE PROCESSOR I9-13900K 2.20GHZ BASE / 5.80GHZ MAX 36MB SMART CACHE TDP 125W / 253W FCLGA1700 ( RAPTOR LAKE )

MANUFACTURER: INTEL
PART NUMBER: CM8071505094011
CPU SERIES: 13TH GEN INTEL CORE I9 PROCESSORS ( I9-13000 SERIES )
PROCESSOR CODE NAME: RAPTOR LAKE
SOCKETS SUPPORTED: FCLGA1700
MAX CPU CONFIGURATION: 1

NOTE: NO HEATSINK, NO ACCESSORIES OR TOOLS INCLUDED

PERFORMANCE

CPU FREQUENCY: 2.20GHZ
CPU MAX TURBO FREQUENCY: 5.80GHZ
PERFORMANCE CORE BASE FREQUENCY: 3.00GHZ
EFFICIENT CORE MAX TURBO FREQUENCY: 4.30GHZ
PERFORMANCE CORE MAX TURBO FREQUENCY: 5.40GHZ
INTEL TURBO BOOST MAX TECHNOLOGY 3.0 FREQUENCY: 5.70GHZ
INTEL THERMAL VELOCITY BOOST FREQUENCY: 5.80GHZ
TOTAL-CORE: 24-CORE
NUMBER OF PERFORMANCE-CORE: 8-CORE
NUMBER OF EFFICIENT-CORE: 16-CORE
THREADS: 32
CACHE: 36MB INTEL SMART CACHE
LITHOGRAPHY: INTEL 7
PROCESSOR BASE POWER: 125W
MAXIMUM TURBO POWER: 253W

SUPPLEMENTAL INFORMATION

EMBEDDED OPTIONS AVAILABLE: NO

MEMORY SPECS

MAX MEMORY SIZE ( DEPENDENT ON MEMORY TYPE ): 192GB
MEMORY TYPES: DDR5 / DDR4
MAX MEMORY SPEEDS: DDR5 5600 MHZ OR DDR4 3200 MHZ
MAX NUM. MEMORY CHANNELS: 2
MAX MEMORY BANDWIDTH: 89.6GB/S
ECC MEMORY SUPPORTED: YES

EXPANSION OPTIONS

DIRECT MEDIA INTERFACE ( DMI ) REVISION: 4.0
MAX NUMBER OF DMI LANES: 8
SCALABILITY: 1S
PCI EXPRESS REVISION: 5.0 / 4.0
PCI EXPRESS CONFIGURATION: UP TO 1X16+4 / 2X8+4
MAX NUM. OF PCI LANES: 20

GPU SPECIFICATIONS

GPU NAME: INTEL UHD GRAPHICS 770
GRAPHICS BASE FREQUENCY: 300 MHZ
GRAPHICS MAX DYNAMIC FREQUENCY: 1.65 GHZ
GRAPHICS OUTPUT: EDP 1.4B / DP 1.4A / HDMI 2.1
EXECUTION UNITS: 32
MAX RESOLUTION ( HDMI ): 4096 X 2160 AT 60 HZ
MAX RESOLUTION ( DP ): 7680 X 4320 AT 60 HZ
MAX RESOLUTION ( EDP - INTEGRATED FLAT PANEL ): 5120 X 3200 AT 120 HZ
DIRECTX SUPPORT: 12
OPENGL SUPPORT: 4.5
OPENCL SUPPORT: 3.0
MULTI FORMAT CODEC ENGINES: 2
INTEL QUICK SYNC VIDEO: YES
INTEL CLEAR VIDEO HD TECHNOLOGY: YES
NUMBER OF DISPLAYS SUPPORTED: 4
DEVICE ID: 0XA780

ADVANCED TECHNOLOGIES

INTEL GAUSSIAN AND NEURAL ACCELERATOR: 3.0
INTEL THREAD DIRECTOR: YES
INTEL DEEP LEARNING BOOST ( INTEL DL BOOST ): YES
INTEL SPEED SELECT TECHNOLOGY: YES
INTEL ADAPTIVE BOOST TECHNOLOGY: YES
INTEL THERMAL VELOCITY BOOST: YES
INTEL TURBO BOOST MAX TECHNOLOGY 3.0: YES
INTEL TURBO BOOST TECHNOLOGY: 2.0
INTEL HYPER THREADING TECHNOLOGY: YES
INTEL 64: YES
INSTRUCTION SET EXTENSIONS: INTEL SSE4.1, INTEL SSE4.2, INTEL AVX2
IDLE STATES: YES
ENHANCED INTEL SPEEDSTEP TECHNOLOGY: YES
THERMAL MONITORING TECHNOLOGIES: YES
INTEL VOLUME MANAGEMENT DEVICE ( VMD ): YES

SECURITY & RELIABILITY

INTEL VPRO ELIGIBILITY: INTEL VPRO ENTERPRISE, INTEL VPRO ESSENTIALS, INTEL VPRO PLATFORM
INTEL THREAT DETECTION TECHNOLOGY ( TDT ): YES
INTEL ACTIVE MANAGEMENT TECHNOLOGY ( AMT ): YES
INTEL STANDARD MANAGEABILITY ( ISM ): YES
INTEL REMOTE PLATFORM ERASE ( RPE ): YES
INTEL ONE CLICK RECOVERY: YES
INTEL HARDWARE SHIELD ELIGIBILITY: YES
INTEL CONTROL FLOW ENFORCEMENT TECHNOLOGY: YES
INTEL TOTAL MEMORY ECRYPTION - MULTI KEY: YES
INTEL AES NEW INSTRUCTIONS: YES
SECURE KEY: YES
INTEL OS GUARD: YES
INTEL TRUSTED EXECUTION TECHNOLOGY: YES
EXECUTE DISABLE BIT: YES
INTEL BOOT GUARD: YES
MODE BASED EXECUTE CONTROL ( MBEC ): YES
INTEL STABLE IT PLATFORM PROGRAM ( SIPP ): YES
INTEL VIRTUALIZATION TECHNOLOGY ( VT-X ): YES
INTEL VIRTUALIZATION TECHNOLOGY FOR DIRECTED I/O ( VT-D ): YES
INTEL VT-X WITH EXTENDED PAGE TABLES ( EPT ): YES
