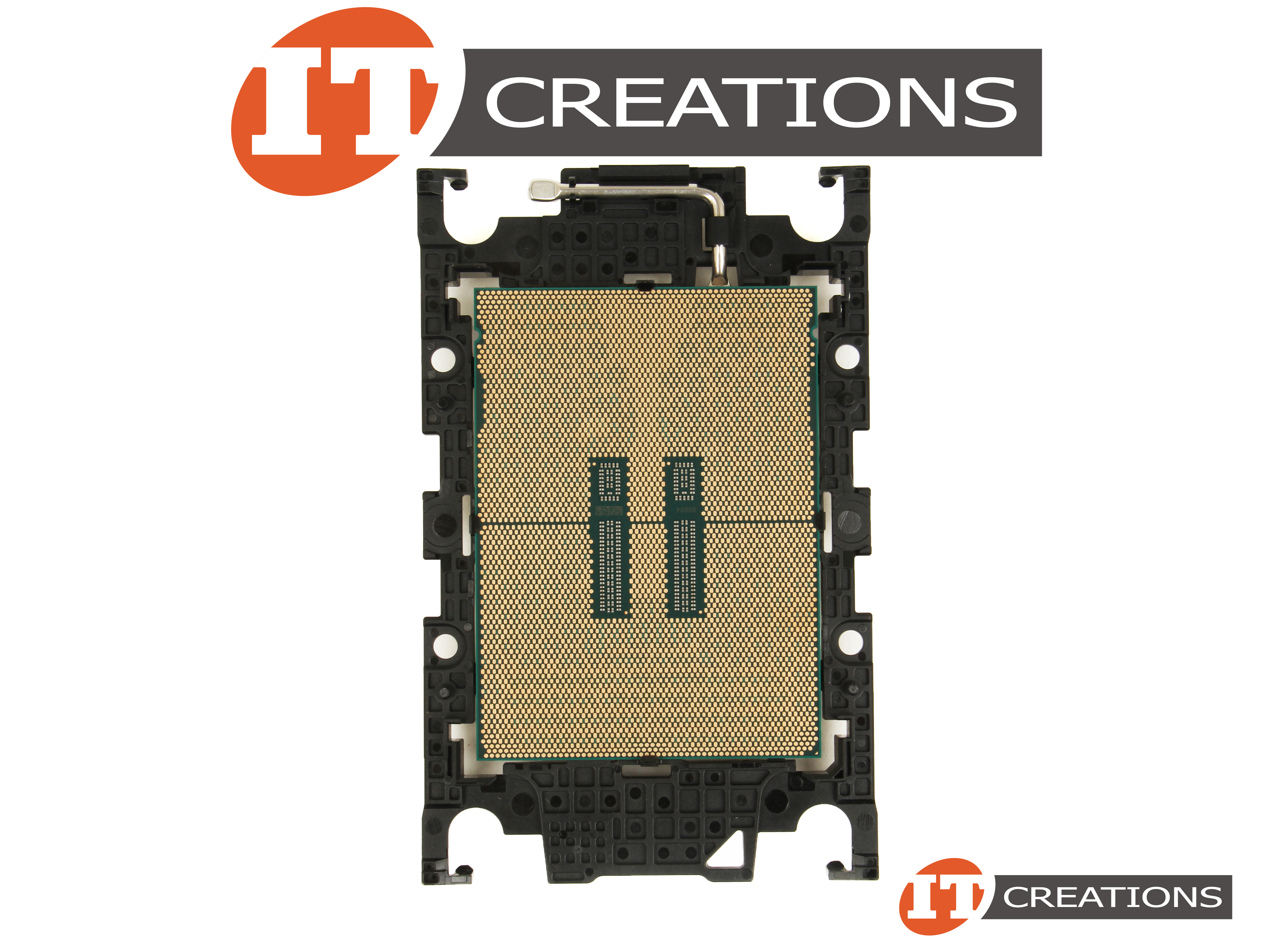

HP CPU INTEL XEON GOLD 32 CORE PROCESSOR 6414U 2.00GHZ 60MB CACHE TDP 250W 1S FCLGA4677 (P53123-001)

Product Details:

HP CPU INTEL XEON GOLD 32 CORE PROCESSOR 6414U 2.00GHZ 60MB CACHE TDP 250W 1S FCLGA4677 FOR HPE PROLIANT DL360 G11 / DL380 G11 / ML350 G11 ( GEN11 ) - REPLACEMENT CPU ONLY ( SAPPHIRE RAPIDS ) ( 4TH GEN SCALABLE )

MANUFACTURER: HP / INTEL
PART NUMBER: P53123-001
CPU SERIES: 4TH GEN INTEL XEON SCALABLE ( GOLD 6400 SERIES )
PROCESSOR CODE NAME: SAPPHIRE RAPIDS
SOCKETS SUPPORTED: FCLGA4677
COMPATIBILITY: HPE PROLIANT DL360 G11 / DL380 G11 / ML350 G11 ( GEN11 )

NOTE:
- NO HEATSINK, NO ACCESSORIES OR TOOLS INCLUDED
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS

PERFORMANCE

CPU FREQUENCY: 2.00GHZ
CPU MAX TURBO FREQUENCY: 3.40GHZ
MULTI-CORE: 32-CORE
THREADS: 64
CACHE: 60MB
INTEL UPI SPEED: 0GT/S
MAX NUMBER UPI LINKS: 0
LITHOGRAPHY: INTEL 7
THERMAL DESIGN POWER: 250W

MEMORY SPECS

MAX MEMORY SIZE ( DEPENDENT ON MEMORY TYPE ): 6TB ( 6,000GB )
MEMORY TYPES: DDR5
MAX MEMORY SPEEDS: 4800 MHZ
MAX NUM. MEMORY CHANNELS: 8
INTEL OPTANE PERSISTENT MEMORY SUPPORTED: YES
ECC MEMORY SUPPORTED: YES

EXPANSION OPTIONS

SCALABILITY: 1S ONLY
PCI EXPRESSION REVISION: 5.0
MAX NUM. OF PCI LANES: 80

ADVANCED TECHNOLOGIES

INTEL ON DEMAND FEATURE ACTIVATION: YES
INTEL SPEED SELECT TECHNOLOGY - CORE POWER: YES
INTEL SPEED SELECT TECHNOLOGY - TURBO FREQUENCY: YES
INTEL DEEP LEARNING BOOST ( INTEL DL BOOST ): YES
INTEL SPEED SELECT TECHNOLOGY - BASE FREQUENCY: YES
HIGH PRIORITY CORES: 12
HIGH PRIORITY CORE FREQUENCY: 2.10GHZ
LOW PRIORITY CORES: 20
LOW PRIORITY CORE FREQUENCY: 1.60GHZ
INTEL RESOURCE DIRECTOR TECHNOLOGY ( INTEL RDT ): YES
INTEL SPEED SHIFT TECHNOLOGY: YES
INTEL TURBO BOOST TECHNOLOGY: 2.0
INTEL HYPER THREADING TECHNOLOGY: YES
INTEL TRANSACTIONAL SYNCHRONIZATION EXTENSIONS ( INTEL TSX ): YES
INTEL 64: YES
INSTRUCTION SET EXTENSIONS: INTEL AMX, INTEL SSE4.2, INTEL AVX, INTEL AVX2, INTEL AVX-512
NUMBER OF AVX-512 FMA UNITS: 2

SECURITY & RELIABILITY

INTEL CRYPTO ACCELERATION: YES
INTEL PLATFORM FIRMWARE RESILIENCE SUPPORT: YES
INTEL QUICKASSIST SOFTWARE ACCELERATION: YES
INTEL CONTROL FLOW ENFORCEMENT TECHNOLOGY: YES
INTEL TOTAL MEMORY ENCRYPTION: YES
INTEL ADVANCED ENCRYPTION STANDARD AES NEW INSTRUCTIONS: YES
INTEL SOFTWARE GUARD EXTENSIONS ( INTEL SGX ): YES WITH INTEL SPS
MAXIMUM ENCLAVE PAGE CACHE ( EPC ) SIZE FOR INTEL SGX: 128GB
INTEL OS GUARD: YES
INTEL TRUSTED EXECUTION TECHNOLOGY: YES
EXECUTE DISABLE BIT: YES
INTEL BOOT GUARD: YES
INTEL RUN SURE TECHNOLOGY: YES
MODE BASED EXECUTE CONTROL ( MBEC ): YES
INTEL VIRTUALIZATION TECHNOLOGY ( VT-X ): YES
INTEL VIRTUALIZATION TECHNOLOGY FOR DIRECTED I/O ( VT-D ): YES
INTEL VT-X WITH EXTENDED PAGE TABLES ( EPT ): YES
