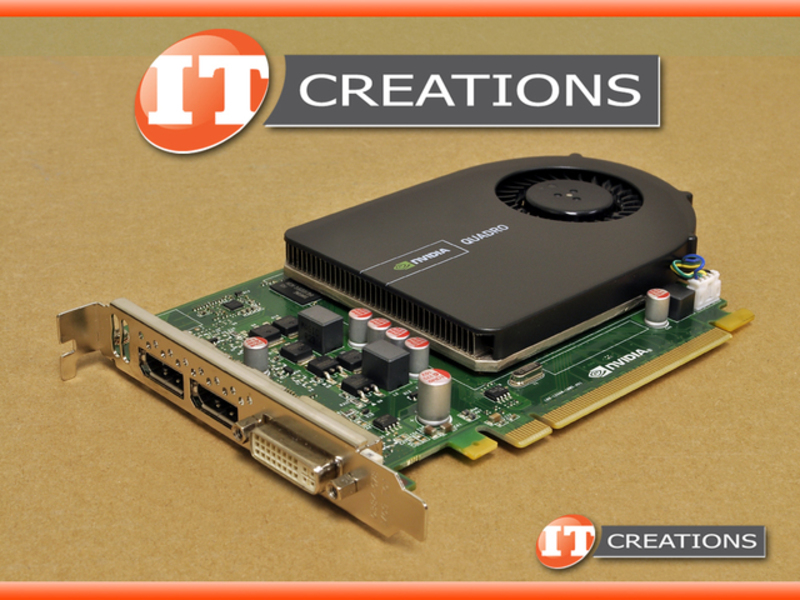

HP NVIDIA QUADRO 2000 GRAPHICS CARD 1GB 192 CUDA CORES MEMORY INTERFACE 128 BIT GDDR5 MEMORY BANDWIDTH 41.6 GB/S PCI-E 2.0 X16 ( 1 ) DUAL LINK DVI-I PORT ( 2 ) TWO DISPLAYPORTS GRAPHICS PROCESSING UNIT GPU VIDEO CARD (QUADRO 2000-HP)

Product Details:

HP NVIDIA QUADRO 2000 GRAPHICS CARD 1GB 192 CUDA CORES MEMORY INTERFACE 128 BIT GDDR5 MEMORY BANDWIDTH 41.6 GB/S PCI-E 2.0 X16 ( 1 ) DUAL LINK DVI-I PORT ( 2 ) TWO DISPLAYPORTS GRAPHICS PROCESSING UNIT GPU VIDEO CARD

MANUFACTURER: HP / NVIDIA
PART NUMBER: QUADRO 2000-HP

ENGINE SPECS:

CUDA CORES: 192

MEMORY:

MEMORY CONFIGURATION: 1GB
MEMORY INTERFACE: GDDR5
MEMORY INTERFACE WIDTH: 128 BIT
MEMORY BANDWIDTH: 41.6GB/S

SUPPORT:

OPENGL ( OPEN GRAPHICS LIBRARY ): 4.3
BUS SUPPORT: PCI-E 2.0
PHYSICAL BUS INTERFACE: PCI-E 2.0 X16
SUPPORTED TECHNOLOGIES: SHADER MODEL 5.0, OPENGL 4.3, MICROSOFT DIRECTX 11, SLI MULTI-OS TECHNOLOGY, NVIDIA CUDA ARCHITECTURE, MOSAIC TECHNOLOGY, NVIEW DISPLAY MANAGEMENT SOFTWARE, FSAA 64X ( MAXIMUM ), AUDIO SUPPORT ( VIA DISPLAYPORT ), PARALLEL DATACACHE, GIGATHREAD ENGINE, FAST 3D TEXTURE TRANSFER, HIGH QUALITY DISPLAY CONNECTORS, 30 BIT COLOR FIDELITY, 3D VISION / 3D VISION PRO, ENERGY STAR ENABLING
SLI SUPPORT: SLI MULTI-OS

DISPLAY SUPPORT:

MAXIMUM DVI RESOLUTION: 3840 X 2400 @ 24HZ
MAXIMUM DISPLAYPORT RESOLUTION: 2560 X 1600

CONNECTIONS:

DISPLAY CONNECTORS: ( 1 ) ONE DUAL LINK DVI-I PORT ( 2 ) TWO DISPLAYPORTS

THERMAL AND POWER SPECS:

MAXIMUM POWER CONSUMPTION: 62W

COOLING SYSTEM:

HEATSINKS: ( 1 ) ONE ACTIVE HEATSINK
FANS: ( 1 ) ONE FAN
