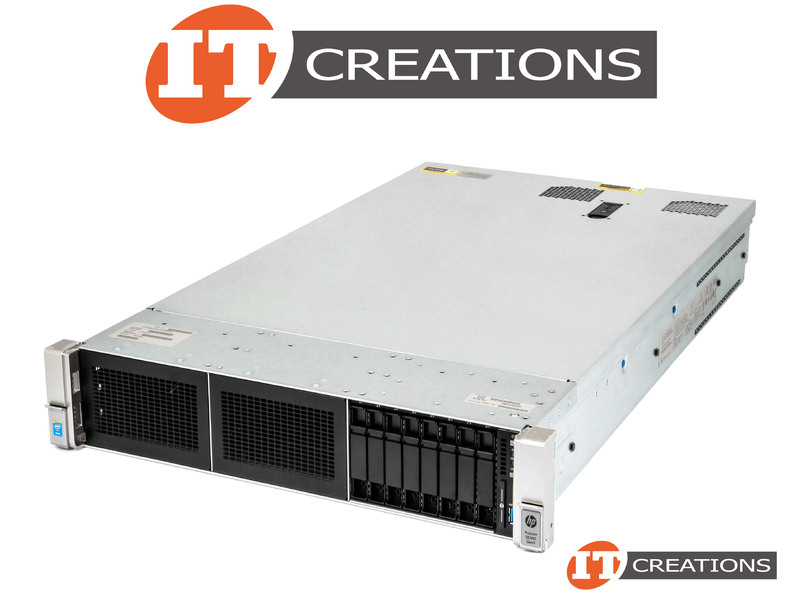

HPE PROLIANT DL560 GEN9 2.5 INCH SFF SERVER CHASSIS ( GEN9 ) (HP DL560 G9)

Product Details:

HPE PROLIANT DL560 GEN9 2.5 INCH SFF SERVER CHASSIS ( GEN9 )

MANUFACTURER: HP
PART NUMBER: HP DL560 G9

NOTE: THIS MODEL IS A STANDARD OPTION ONLY, IT DOES NOT INCLUDE ANY PROCESSORS, MEMORY, STORAGE OR POWER SUPPLIES - PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR CUSTOMIZE CONFIGURATIONS

PROCESSOR SUPPORT

MAX NUMBER PROCESSOR CONFIGURATION: UP TO ( 4 ) FOUR CPUs
PROCESSOR SOCKET TYPE: FCLGA2011-3 ( SOCKET R3 )
PROCESSOR COMPATIBILITY: INTEL XEON E5 V4 PROCESSOR FAMILY ( E5-4600V4 SERIES ) / INTEL XEON E5 V3 PROCESSOR FAMILY ( E5-4600V3 SERIES )
PROCESSOR CORE COUNT: UP TO 22 CORES PER SOCKET
PROCESSOR TDP: UP TO 135W

-NOTE: PROCESSOR CONFIGURATIONS SUPPORT 1, 2 OR 4 PROCESSORS ( 3 PROCESSORS NOT SUPPORTED ) - PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS

MEMORY SUPPORT

MEMORY SUPPORTED: UP TO ( 48 ) FORTY EIGHT DIMM SLOTS ( 12 DIMMs PER PROCESSOR )
MEMORY SIZE: UP TO 1.5TB ECC RDIMM / 6TB LRDIMM
MEMORY SPEEDS: DDR4-2400MHZ ( SPEEDS MAY VARY BASED ON PROCESSOR TYPE )
NUMBER OF CHANNELS: 4 CHANNELS PER PROCESSOR ( 3 DIMMS PER CHANNEL )

-NOTE: 12 DIMMs AVAILABLE PER PROCESSOR - PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS

STORAGE SUPPORT

HARD DRIVE SUPPORT: UP TO ( 24 ) TWENTY FOUR 2.5 INCH SFF HOT PLUG HARD DRIVES ( 8 BAY IS STANDARD )
STORAGE TYPE: HDD / SDD
STORAGE PROTOCOL: SAS / SATA
MAX STORAGE SIZE: UP TO 48TB HDD OR 92TB SSD

-NOTE: 8+2, 16+2, 24 BAY STORAGE CONFIGURATIONS ALSO AVAILABLE - PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS

EXPANSION SLOT SUPPORT

NUMBER OF PCI SLOTS SUPPORT: UP TO ( 7 ) SEVEN SLOTS
PCI INTERFACE TYPE: INTERFACES VARY
- 3X8 ( STANDARD )
- 1X16 + 1X8 ( PRIMARY OPTIONAL )
- 1X16 + 2X8 ( SECONDARY OPTIONAL )
- 1X8 ( EXPANSION SLOT 7 )

POWER SUPPORT

NUMBER OF POWER SUPPLIES SUPPORT: UP TO ( 2 ) TWO SLOTS
MAX POWER IN WATTAGE: 3000W ( 1500W PER POWER SUPPLY )

OPERATING SYSTEMS SUPPORTED

- MICROSOFT WINDOWS SERVER
- RED HAT ENTERPRISE LINUX ( RHEL )
- SUSE LINUX ENTERPRISE SERVER ( SLES )
- VMWARE

-NOTE: OPTIONS ARE BASED ON HPE QUICKSPECS DOCUMENTATION DATED APRIL 2018 - UPDATED INFORMATION MAY CHANGE
