Tyan Thunder SX TN76B7102 B7102T76V12HR-2T-N Server

Description

With superfast network connection speeds, plus substantial compute, memory and storage capacity, this system is ideal for big data analytics, data visualization, simulation, machine learning, and in-memory database applications. The Tyan Thunder SX TN76B7102 B7102T76V12HR-2T-N Server supports the latest technology from Intel including Xeon Scalable processors from Gen 1 and Gen 2. Two hot-swap 1200W power supplies offer 1+1 redundancy, and 12 fans provide system cooling.

Other TN76B7102 Chassis Configurations

B7102T76V12HR-2T-N2
24 x DIMM slots, 2 x DW GPU, 2 x 10 GbE ports, 2 x NVMe M.2: PSU 1000W/1200W

B7102T76V12HR-2T-G
24 x DIMM slots, 2 x 10 GbE ports, 2 x NVMe M.2: PSU 1200W

B7102T76V12HR-2T-G2
24 x DIMM slots, 2 x 10 GbE ports, 2 x NVMe M.2: PSU 1000W/1200W

B7102T76V8E4HR-2T-N
24 x DIMM slots, 2 X DW GPU, 2 x 10 GbE ports, 2 x NVMe M.2, Up to 4 x NVMe U.2: PSU 1200W

B7102T76V8E4HR-2T-N2
24 x DIMM slots, 2 X DW GPU, 2 x 10 GbE ports, 2 x NVMe M.2, Up to 4 x NVMe U.2: PSU 1000W/1200W

Performance

Using Intel Xeon Scalable processors with an integrated Omni-Path connector provides a faster, more direct path to the network at speeds of up to 100Gb/s using an Omni-Path network fabric card. The motherboard of the Tyan TN76B7102 B7102T76V12HR-2T-N Server will support one or two Gen 1 or Gen 2 Intel Xeon Scalable processors up to 165W. Processors that exceed 165W are only supported using an optional heat sink with integrated liquid cooling (FRU-TH-0220). Each processor supports six memory channels.

Storage

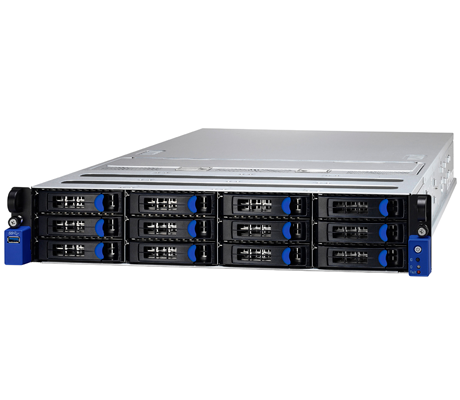

Storage bays on the front of the Tyan TN76B7102 B7102T76V12HR-2T-N Server support up to 12x SATA storage devices. A hybrid configuration supporting both SATA/SAS and NVMe is available on the B7102T76V8E4HR-2T-N chassis configuration. Drive trays support 3.5-inch or 2.5-inch drives. The integrated controller supports Virtual RAID on CPU through Intel’s Rapid Storage Technology Enterprise (RSTe). Although you will need a standard or premium VROC key to support certain RAID conditions.

Memory

There are two memory modules per memory channel with each processor supporting 12 memory module slots, for a total of 24 module slots. DDR4 Registered (RDIMM), Load-Reduced (LRDIMM) and 3DS LRDIMM and RDIMM memory modules are supported. The 3DS LRDIMM and RDIMM memory modules will provide the greatest capacity at up to 3TB. Registered memory modules support the least memory at 768GB.

Expansion

Depending on what you install in your expansion slots there is the potential for up to 8x PCIe 3.0 slots total, supported by three separate riser options. You can also install Nvidia Tesla GPUs in two of the x16 slots that can handle double-wide cards. Graphics cards supported on the Tyan TN76B7102 B7102T76V12HR-2T-N Server include Nvidia’s GeForce GTX 980TI, and the Titan X.

Management

Basic local and remote management on the Tyan TN76B7102 B7102T76V12HR-2T-N Server is handled by the integrated AST2500 Base Management Controller (BMC) with Redfish Support. Redfish is an associated program interface that helps manage the deployment of scale-out servers in a software-defined data center application or for Converged Hybrid IT. The integrated AST2500 supports video compression, storage over IP and remote platform-flash. This system runs both Windows and Linux operating system and is also VMware certified using specific Intel Xeon processors.

Summary

Tyan is becoming a serious contender in the x86 server space with high-capacity 2U servers designed to compete against more established manufacturers. The Tyan Thunder SX TN76B7102 B7102T76V12HR-2T-N Server offers comparable performance to Dell's R740 platform and HPE’s DL380 Gen10 supporting many of the same features with dual Intel Xeon Scalable processors, plus generous memory and storage.
