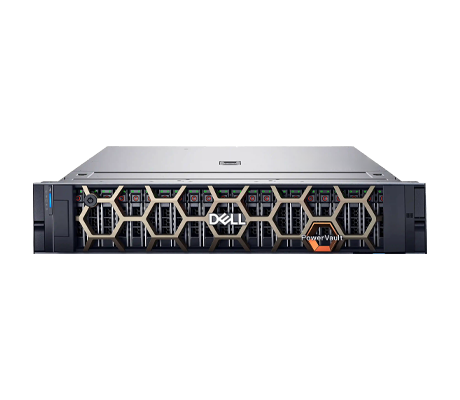

Designed and optimized for direct-attached storage (DAS), the Dell PowerVault MD2424 Storage Array connects to the SAS ports of a host system. The array can be easily managed through the host system’s iDRAC utility or SHMCLI. This 2U enclosure supports up to 24x hot-swappable 2.5-inch drives arranged vertically across the front. A minimum of 2x drives are required for operation, and the system can support up to 4x additional enclosures, allowing for a total of 96 drives.
Dell PowerVault MD2424 Storage Array - System Overview
Description
With SSDs, the system can offer a maximum storage capacity of 737.28TB, while using HDDs, the capacity reaches up to 230.40TB. Note that the enclosure is not compatible with SATA, NVMe, or vSAS drives. Engineered to be a performance-optimized storage array, the PowerVault MD2424 features a 24Gb/s SAS4 expansion connection that doubles the bandwidth compared to older Dell MD storage arrays. Each enclosure features dual redundant, hot-swappable 800W power supplies and two redundant enclosure management modules (EMMs). Because the enclosure only supports redundant configurations, both EMMs need to be connected to the server.
The Dell MD2424 can be used for a variety of data center applications, including disaster recovery storage, databases, and critical business applications. To manage the enclosure, the server to which it is connected to can access the enclosure’s health by locally or remotely using the Integrated Dell Remote Access Controller (iDRAC) or Server Hardware Manager Command Line Interface (SHMCLI). This allows administrators to efficiently manage multiple systems from a single interface, even when the server is powered off, with devices like tablets or smartphones.
